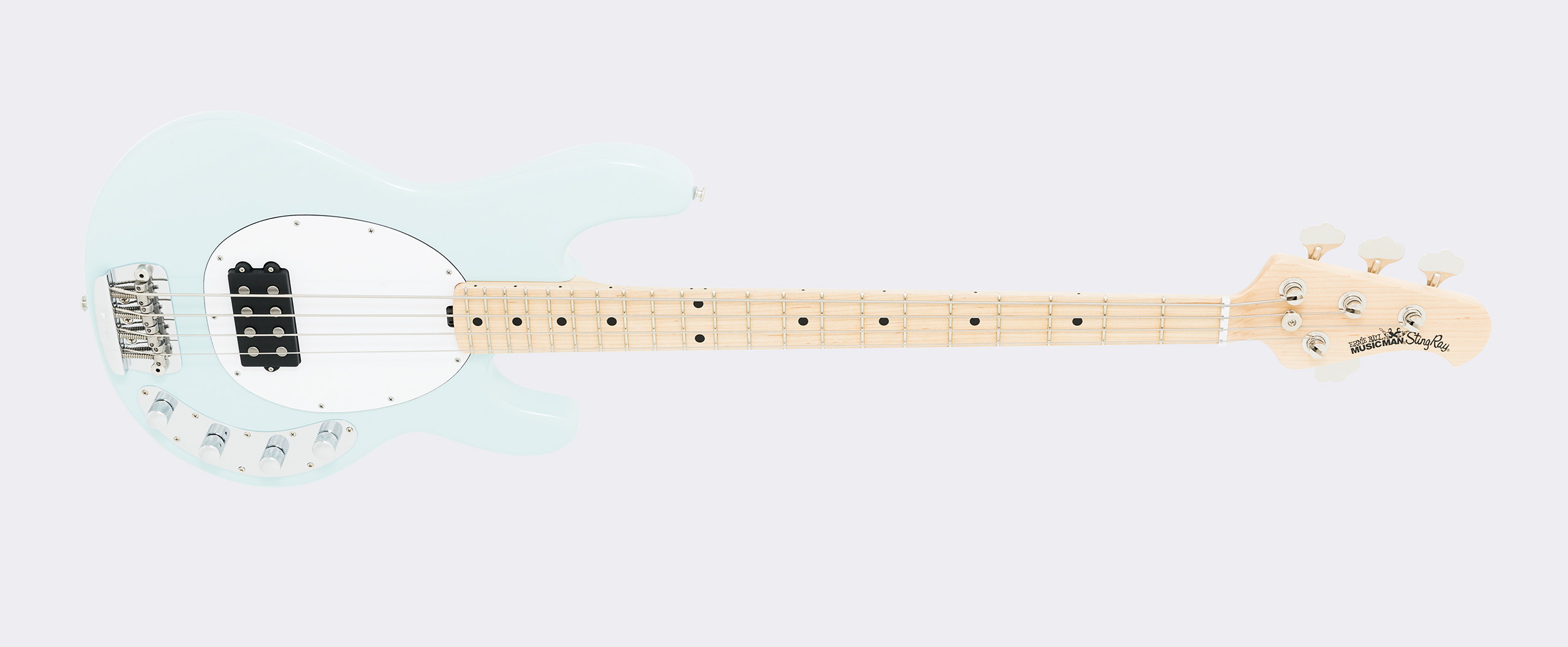

First introduced in 1976, the StingRay has been revered as one of the most iconic bass guitars in history. The StingRay was the first production four string bass to feature on-board active equalization. The flagship of the Music Man line, today's StingRay is the same as it was some forty years ago featuring a solid roadworthy construction, massive hardened steel bridge, elegant oval pickguard, 3+1 tuning key configuration, and the ever popular Music Man humbucker. All of which combined produce a look, feel and sound that are remarkably unmistakable.

StingRay Logo

StingRay Highlights

StingRay Slide
StingRay Slide
StingRay Slide
StingRay Slide
StingRay Slide
StingRay Slide
StingRay Slide
StingRay Slide
StingRay Slide
StingRay Slide
StingRay Highlight

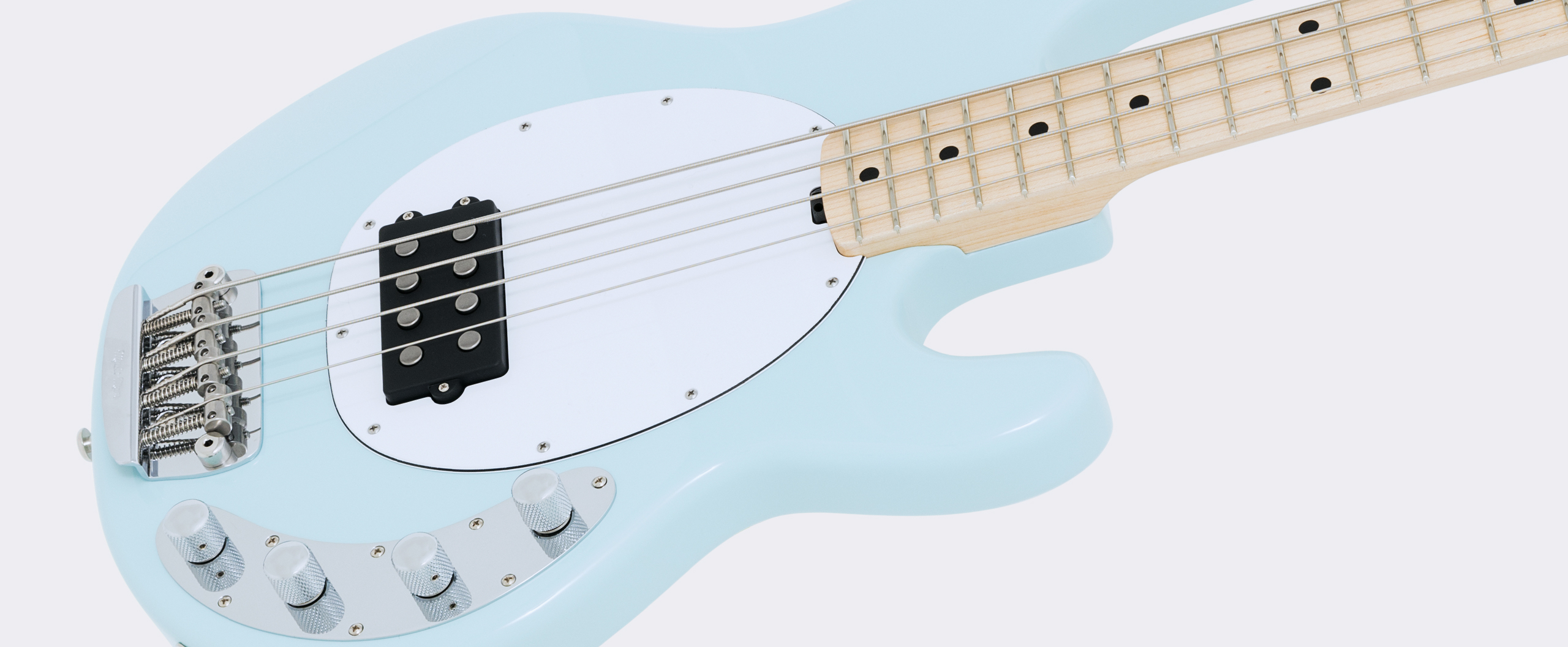

Alnico Humbucking Pickup
StingRay Highlight
3 band eq active preamp
StingRay Highlight
Compensated nut

Specifications, Schematics & More

Specifications StingRay
Model StingRay
Size 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
Body Wood Ash
Body Finish High gloss polyester

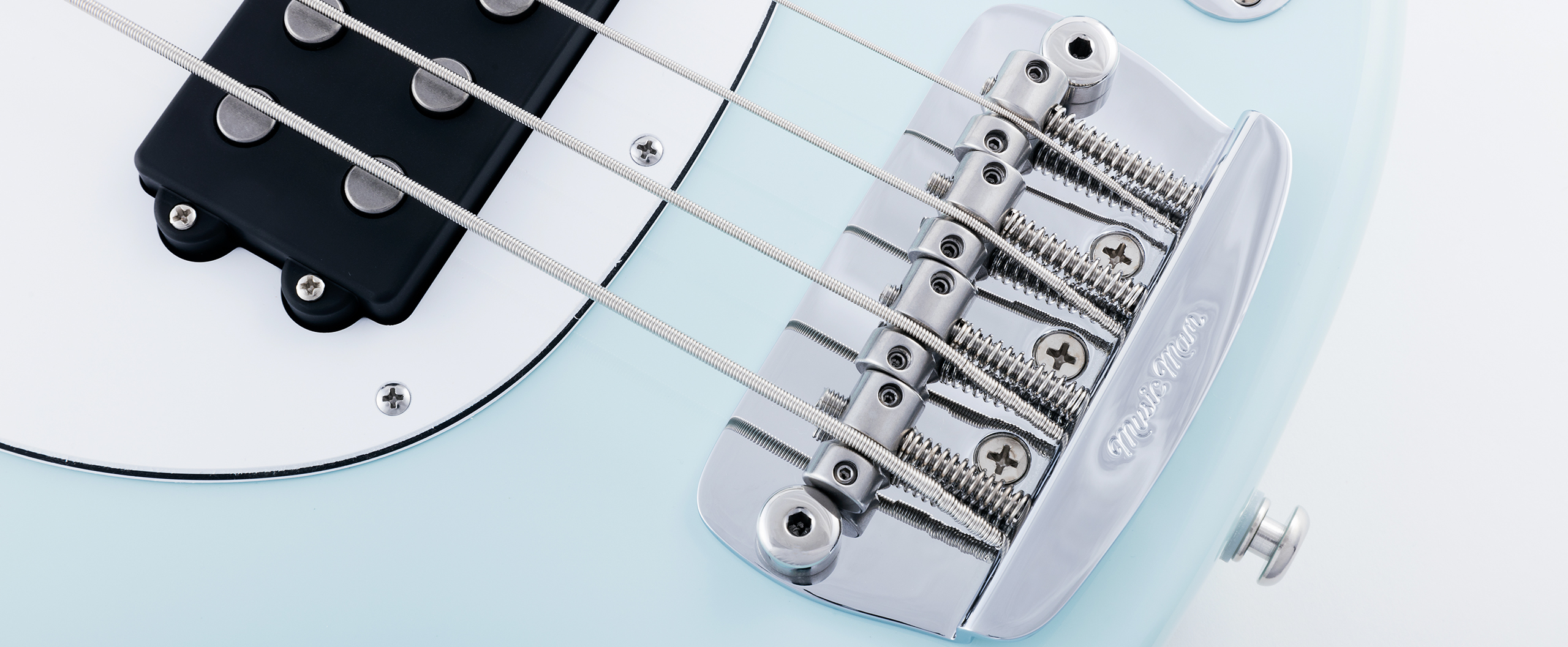

Bridge Standard - Music Man® chrome plated, hardened steel bridge plate with stainless steel saddles (Stealth Black finish features matte black hardware)
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)

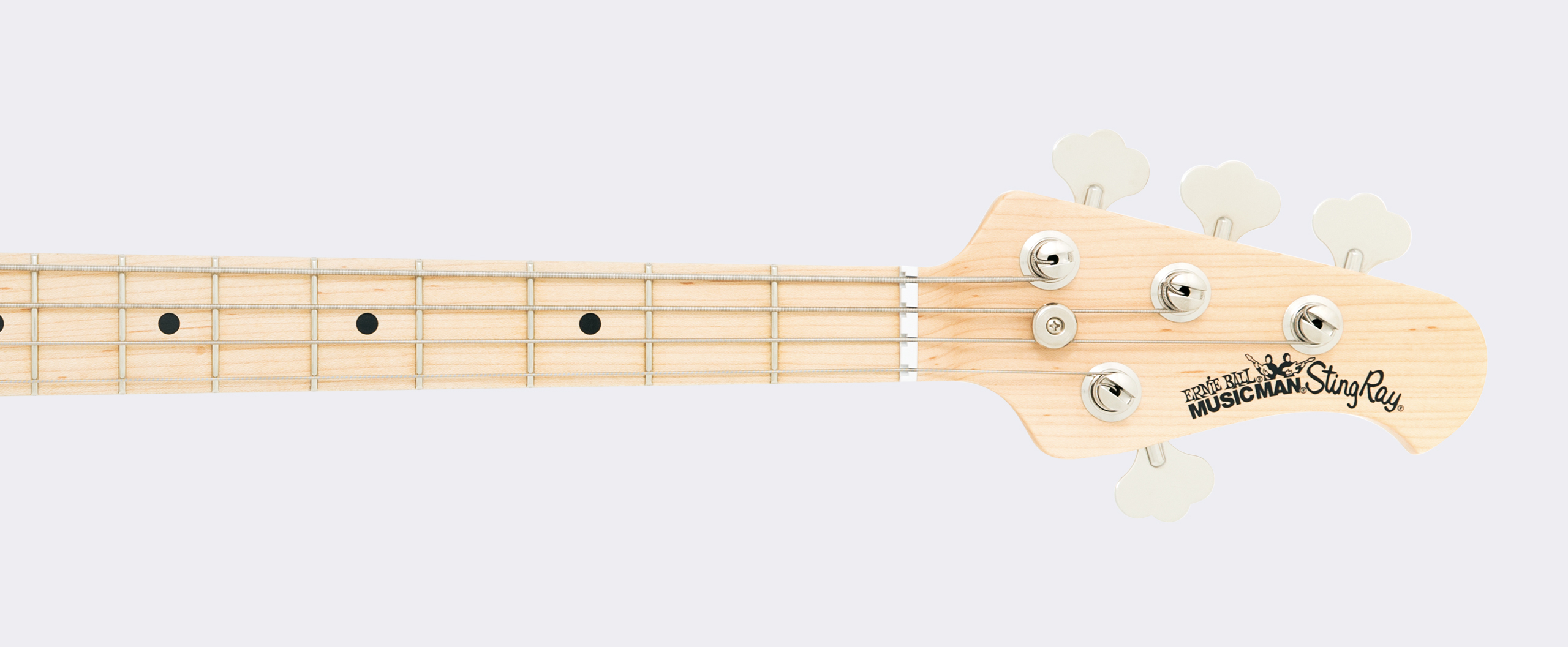

Headstock Size Only 8-3/4" (22.2 cm) long
Frets 21 - High profile, wide
Neck Width 1-11/16" (42.86 mm) at nut 2-1/2" (63.5 mm) at last fret; SLO Special -1-1/2" (38.1 mm) at nut, 2-1/2" (63.5 mm) at last fret
Neck Wood Select maple neck
Fingerboard Fretted - maple or rosewood; Fretless - Pau Ferro with or without inlaid fretlines; Stealth Black - Ebony
Neck Finish Gunstock oil and hand-rubbed special wax blend (Ultra-light satin polyurethane finish for Stealth Black)
Neck Colors Standard - Natural; Optional - Matching painted headstock
Tuning Machines Schaller BM, with tapered string posts
Truss Rod Adjustable - no component or string removal

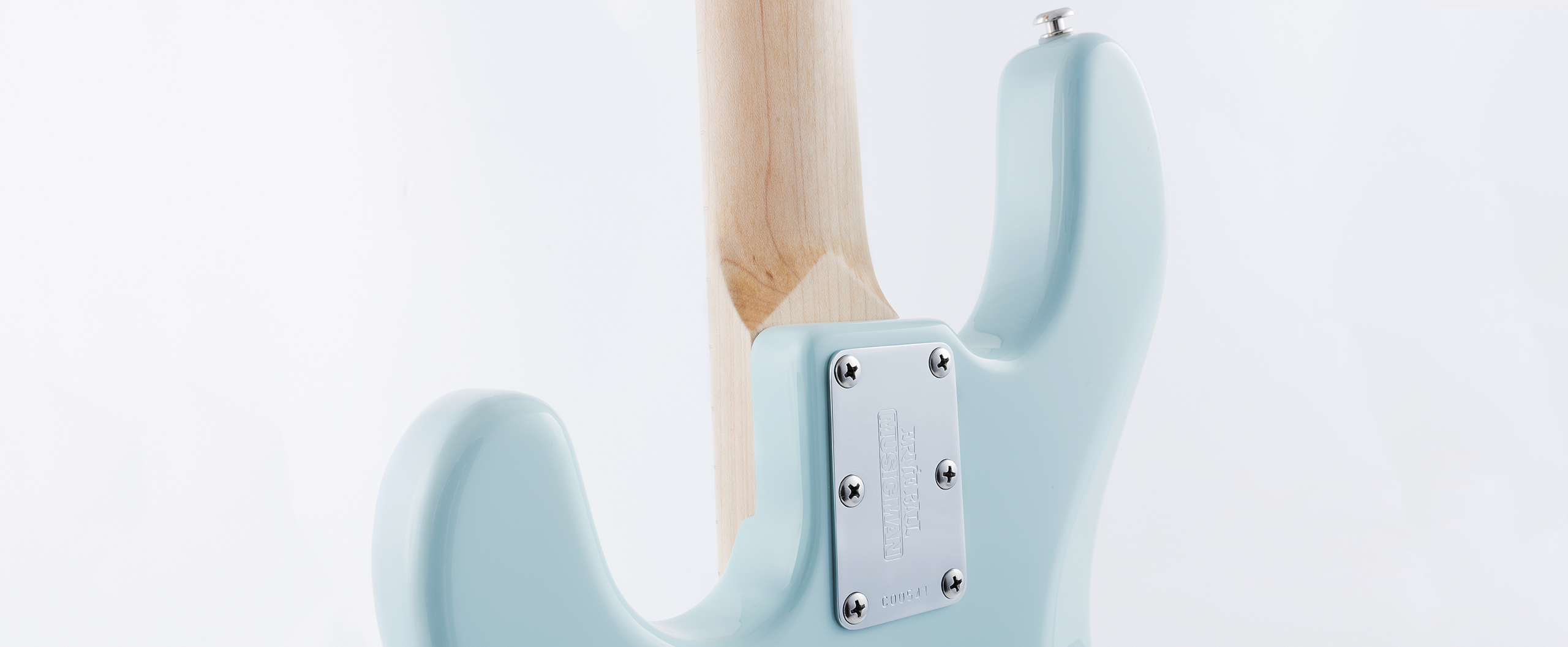

Neck Attachment 6 bolt neck plate
Electronic Shielding Chrome plated brass control cover
Controls Single Pickup, 3-band active preamp or 2-band active preamp; vol, treble, mid, bass; Dual Pickup, 3-band active preamp; vol, treble, mid, bass
Switching Single Pickup - N/A; Dual Pickup - 5-way lever pickup selector
Pickups Standard - Music Man® humbucking with Alnico magnets; Optional - Dual Humbucking with Alnico magnets; Optional - Humbucking/Single coil with Alnico magnets
Left Handed Yes
Strings 45w-65w-80w-100w (Super Slinky Bass #2834)

id => 46

iid => 46

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:46

updated_at => 2015-11-06 08:20:46

Specifications StingRay
Model StingRay
Order 0
Size 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long)
Body Wood Ash
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Standard - Music Man® chrome plated, hardened steel bridge plate with stainless steel saddles (Stealth Black finish features matte black hardware)
Pickguard
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 21 - High profile, wide
Neck Width 1-11/16" (42.86 mm) at nut 2-1/2" (63.5 mm) at last fret; SLO Special -1-1/2" (38.1 mm) at nut, 2-1/2" (63.5 mm) at last fret
Neck Wood Select maple neck
Fingerboard Fretted - maple or rosewood; Fretless - Pau Ferro with or without inlaid fretlines; Stealth Black - Ebony
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend (Ultra-light satin polyurethane finish for Stealth Black)
Neck Colors Standard - Natural; Optional - Matching painted headstock
Neck Binding
Tuning Machines Schaller BM, with tapered string posts
Truss Rod Adjustable - no component or string removal
Neck Attachment 6 bolt neck plate
Electronic Shielding Chrome plated brass control cover
Controls Single Pickup, 3-band active preamp or 2-band active preamp; vol, treble, mid, bass; Dual Pickup, 3-band active preamp; vol, treble, mid, bass
Switching Single Pickup - N/A; Dual Pickup - 5-way lever pickup selector
Pickups Standard - Music Man® humbucking with Alnico magnets; Optional - Dual Humbucking with Alnico magnets; Optional - Humbucking/Single coil with Alnico magnets
Left Handed Yes
Strings 45w-65w-80w-100w (Super Slinky Bass #2834)
