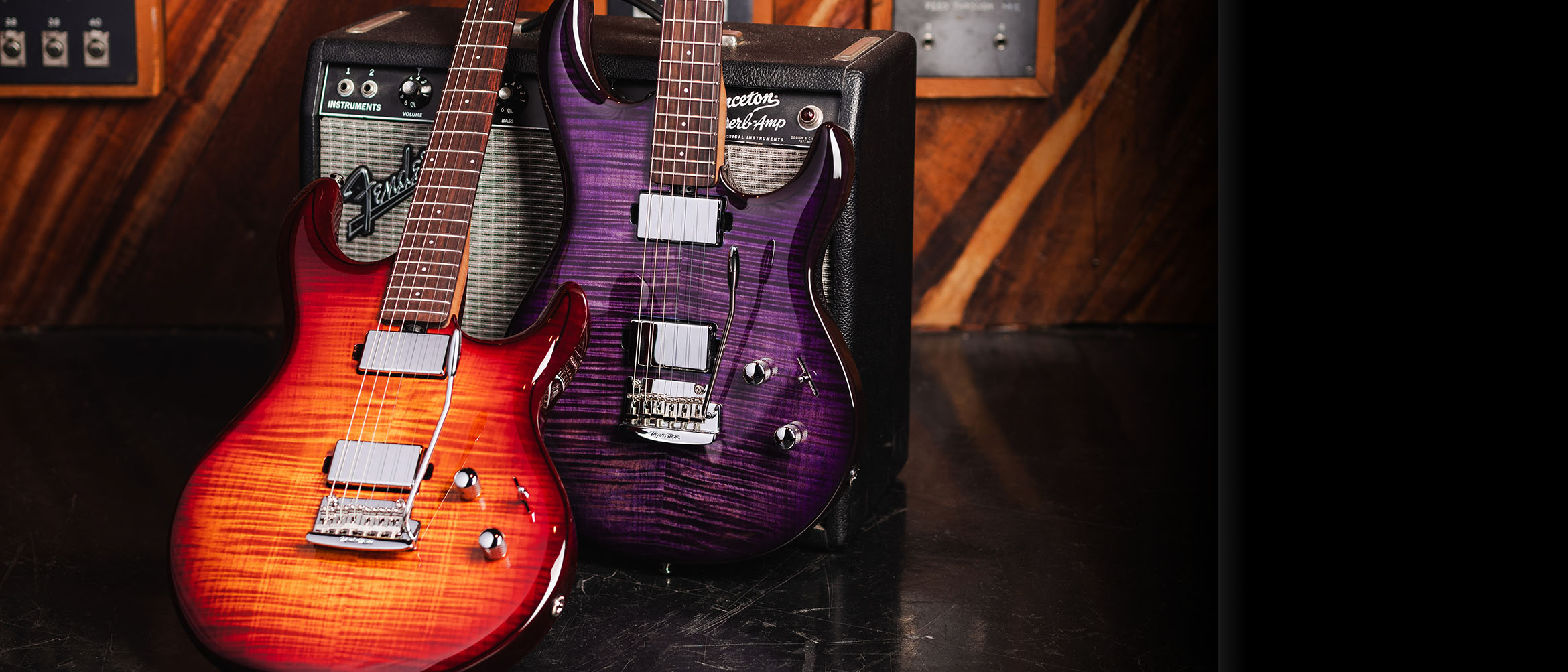

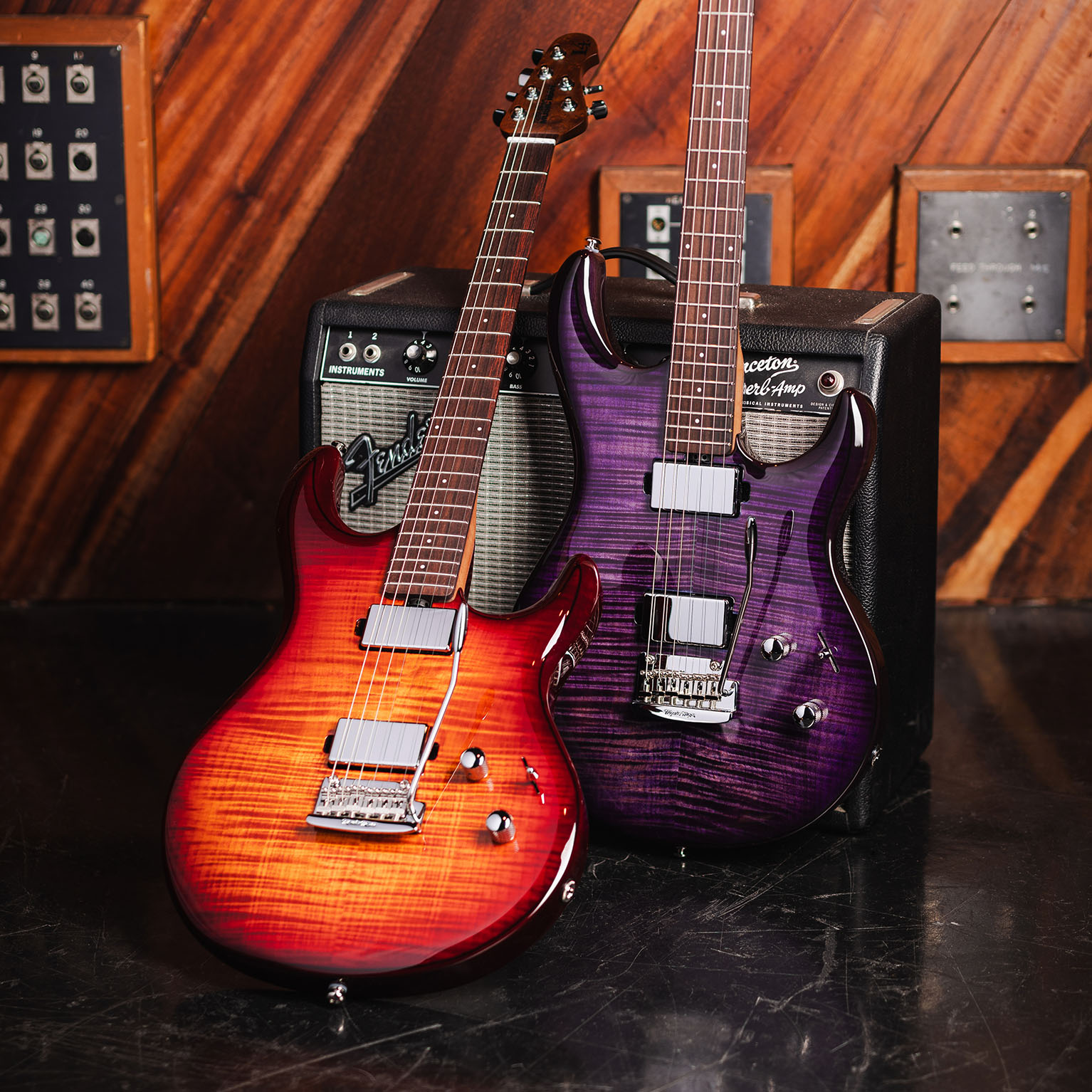

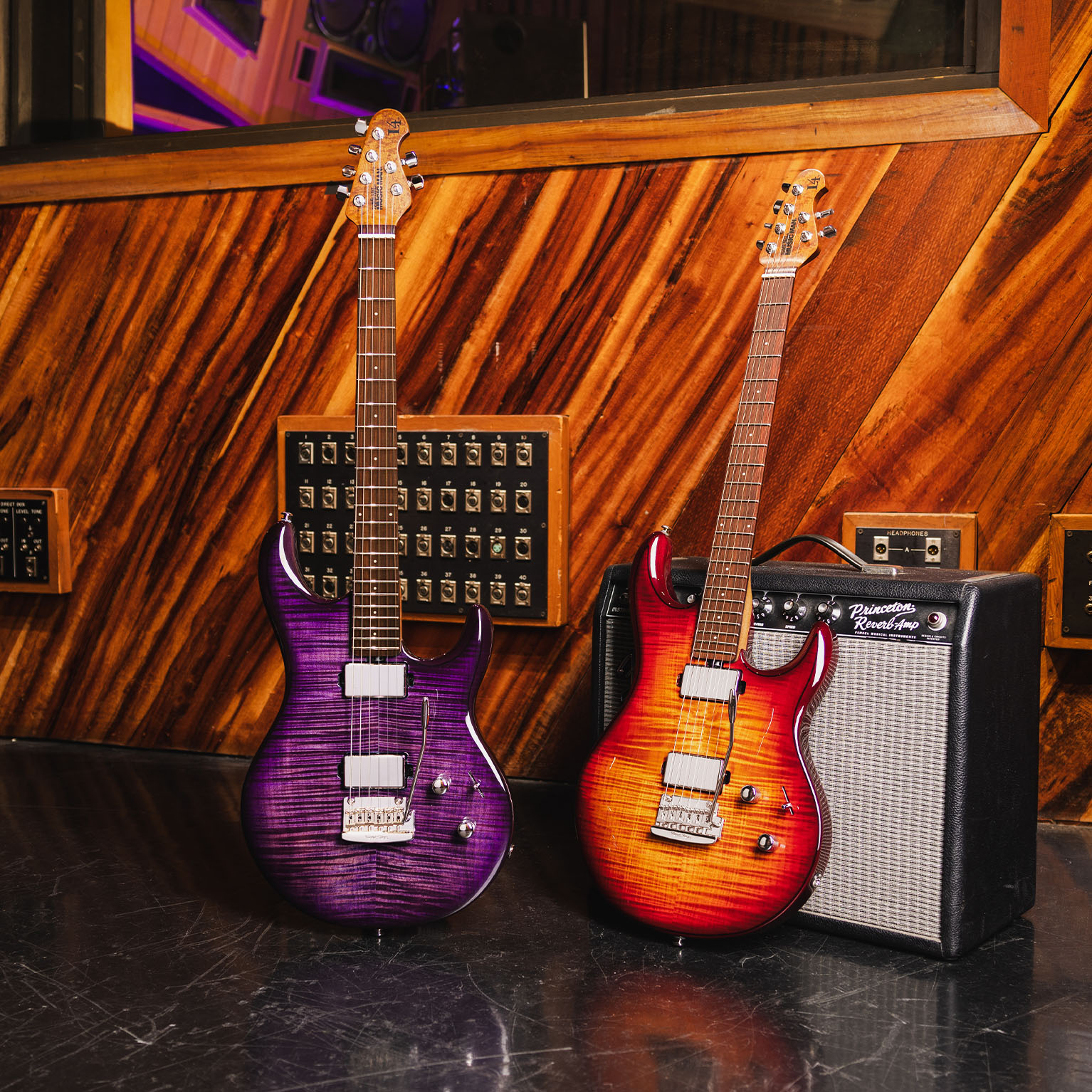

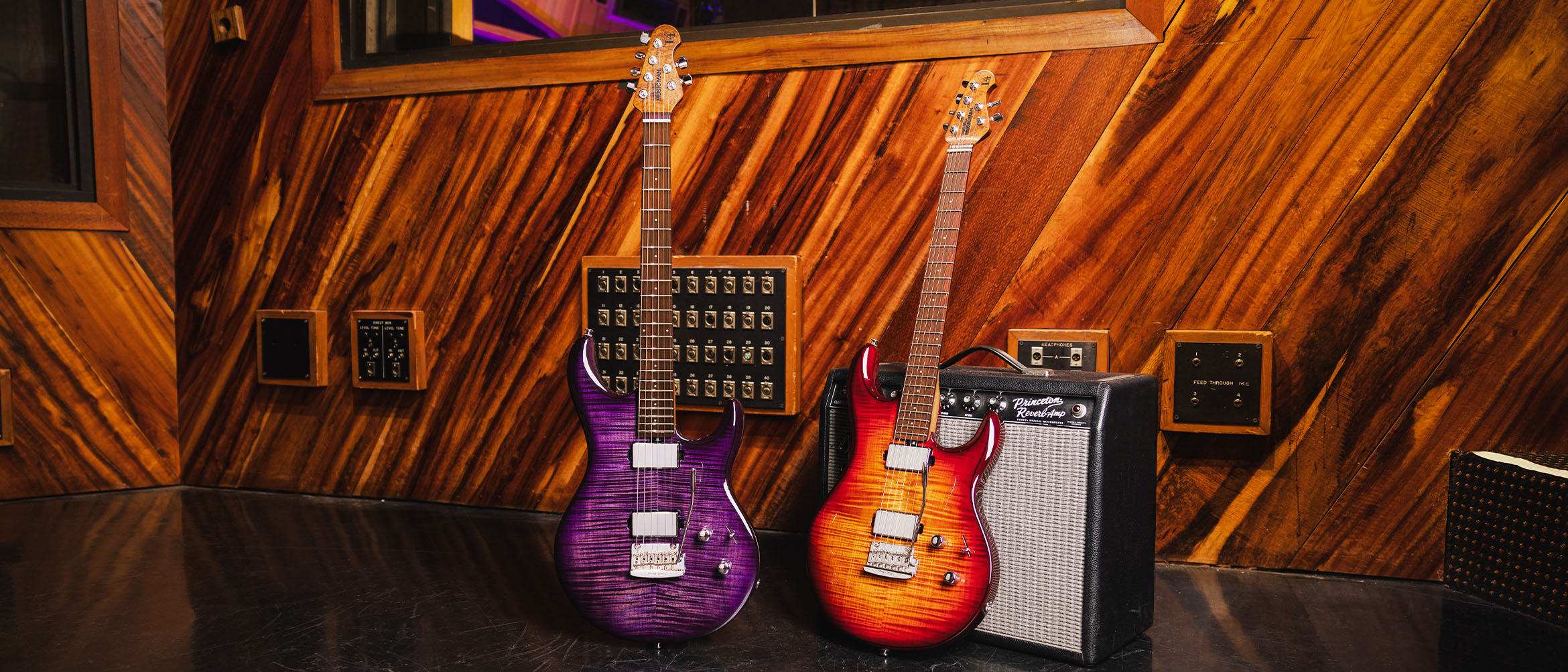

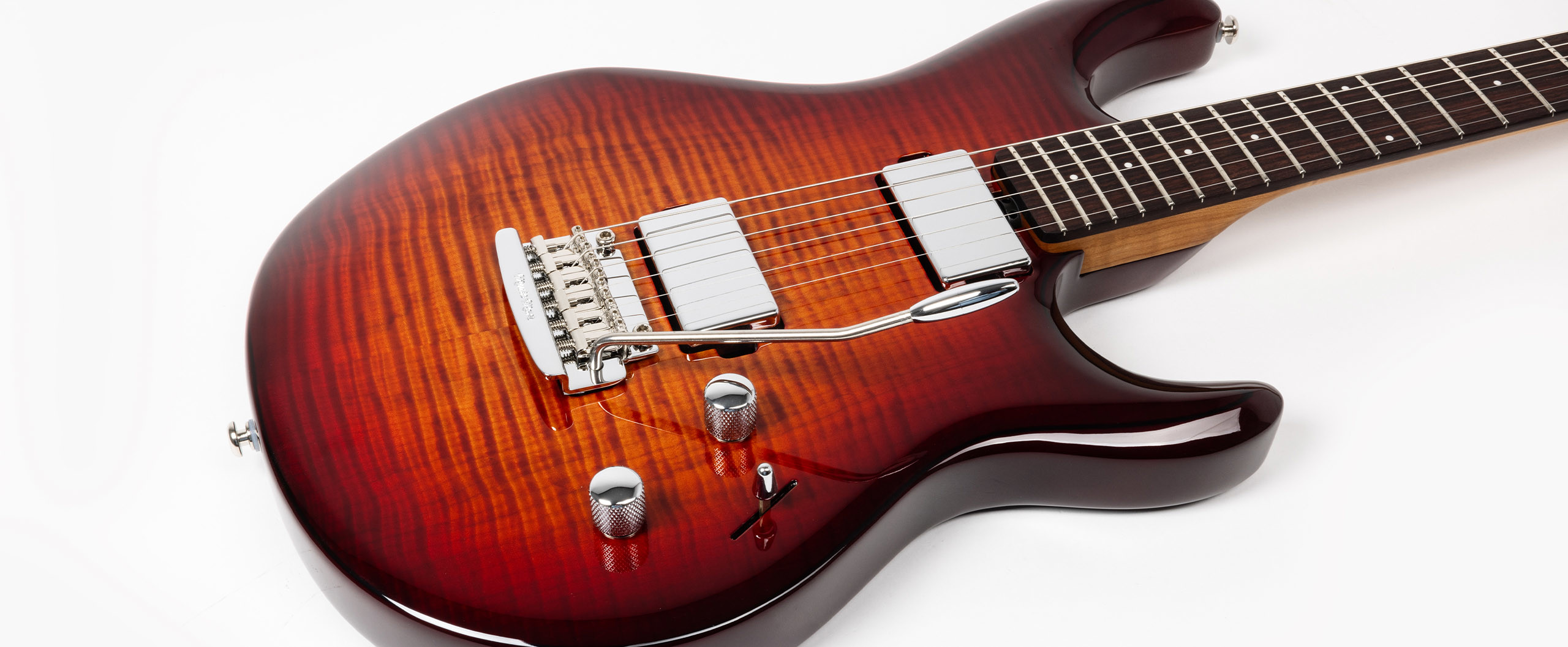

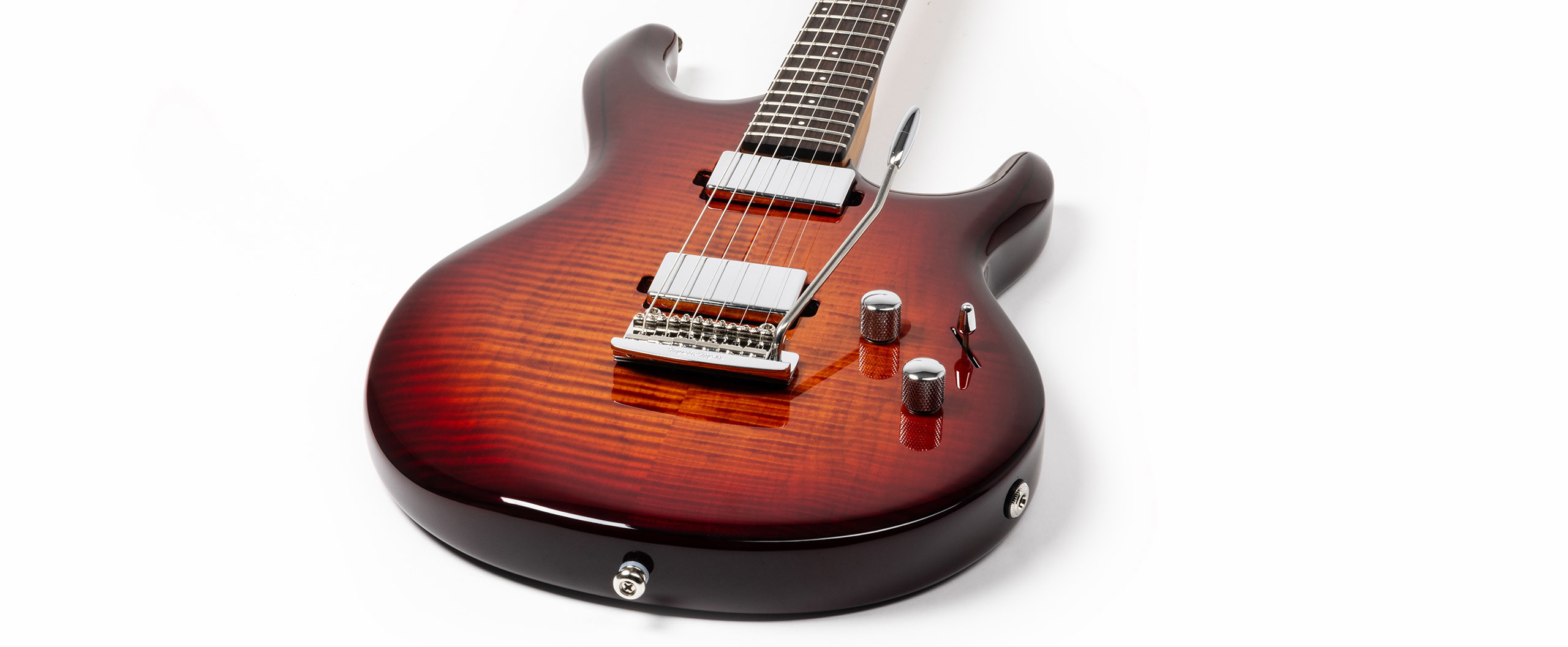

The Luke 4 Maple Top is now available in two bold new finishes: Afterburn and Grape Slushie. Built with a lightweight okoume body, flame maple top, and roasted figured maple neck, this guitar is designed for smooth playability and exceptional tone. It features 2 Music Man HT humbuckers along with a 12dB adjustable gain boost and a floating Music Man vintage-style tremolo for ultimate versatility. With locking tuners and a resonant maple top, the Luke 4 blends style, reliability, and performance seamlessly.
Afterburn
Grape Slushie
Gator Burst
Blue Dream
Incorporating the principles and insights that contributed to the development of Cobalt and M-Steel Slinkys resulting in a new material-based innovation for pickups.

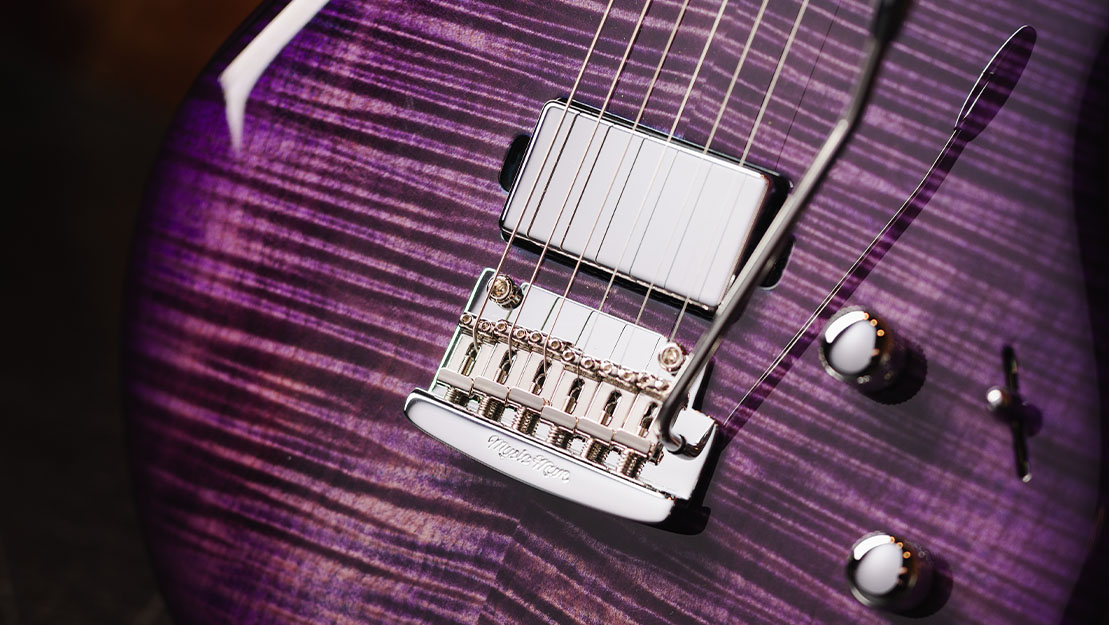

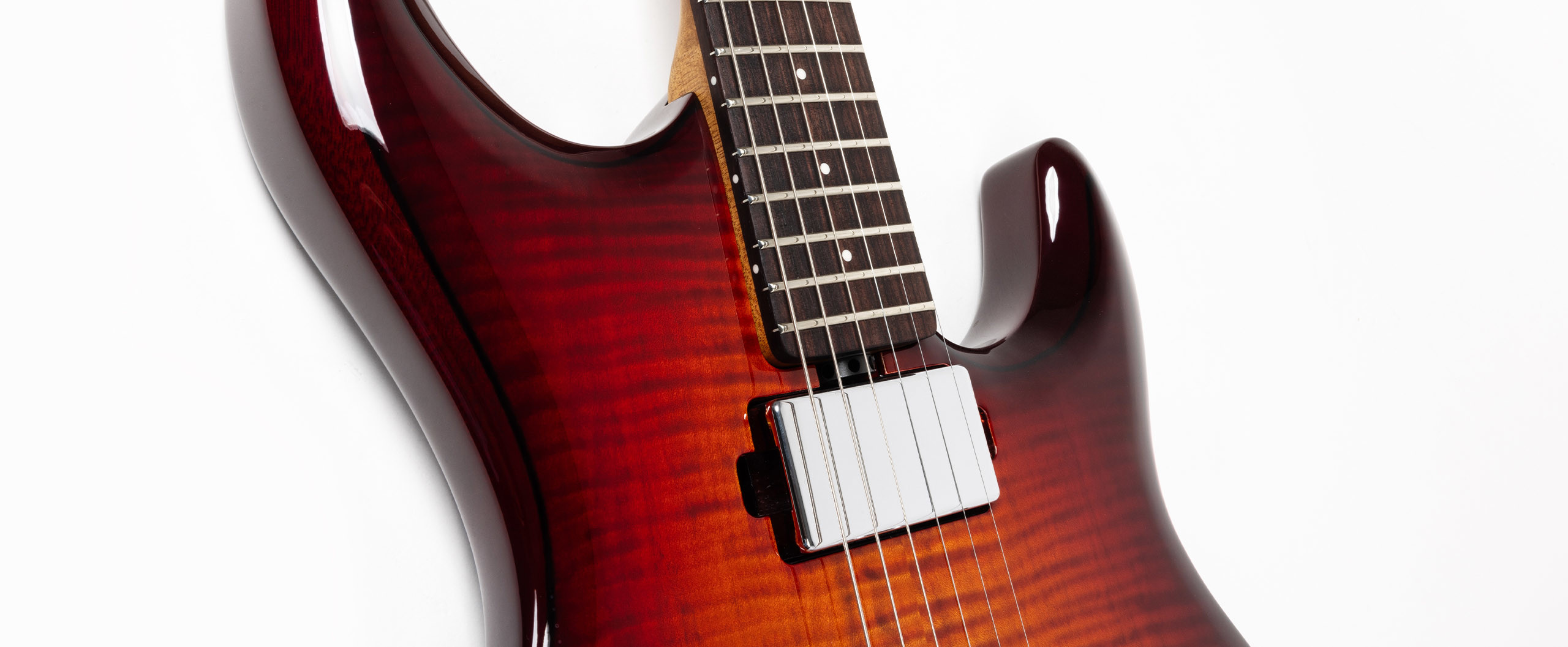

The HT bridge pickup outperforms regular spec pickups with ultra-high output, more dynamic range, and excellent touch sensitivity. The pickup garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

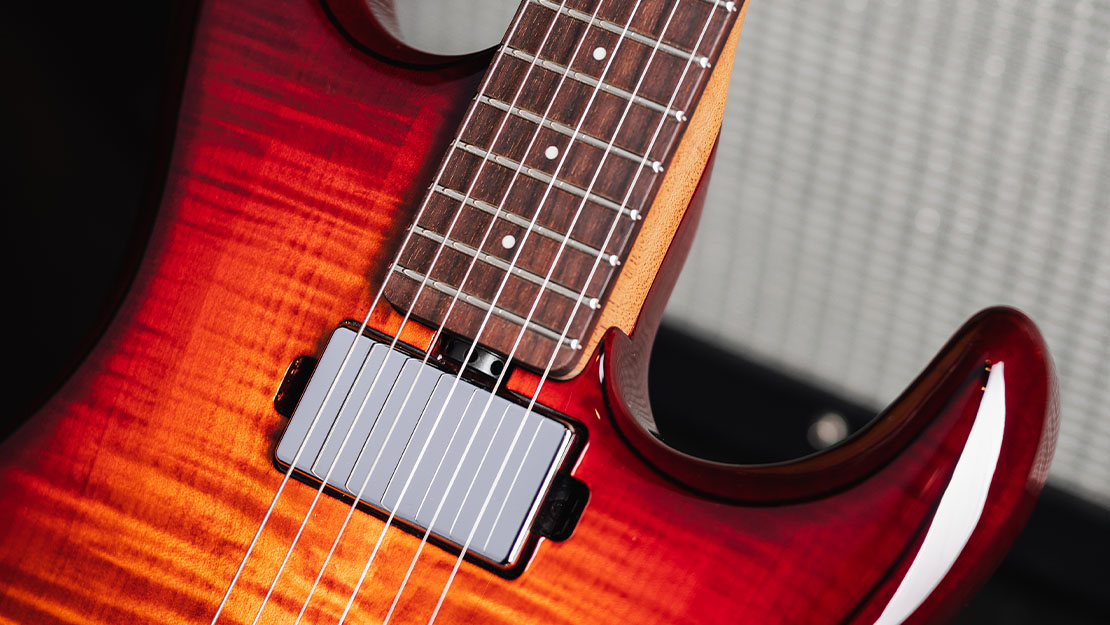

The custom-wound HT neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Luke 4’s bridge pickup.

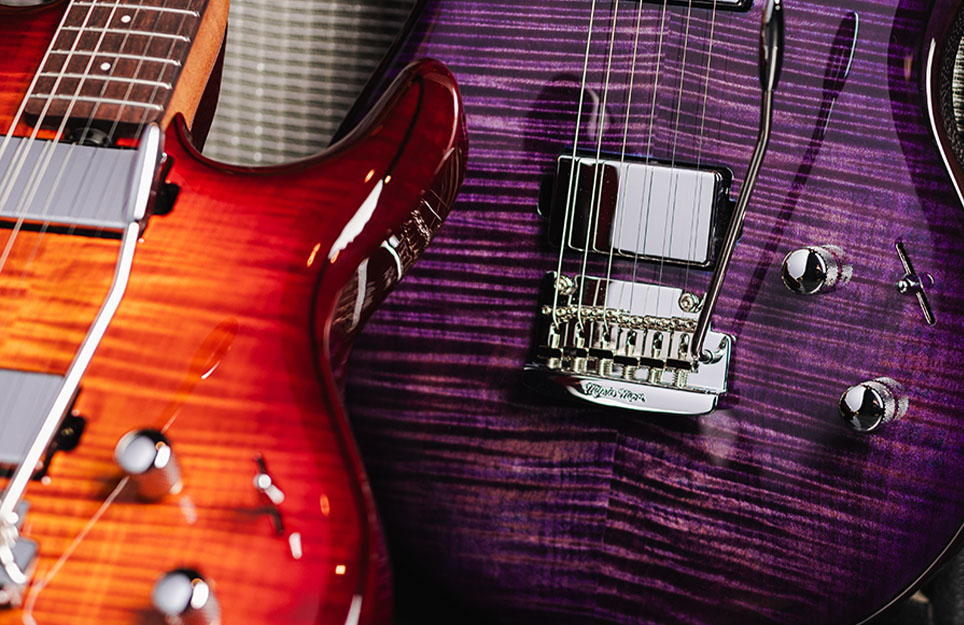

A push-push volume knob activates the Luke 4 HT preamp boost and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high-octane soloing whenever the user chooses.

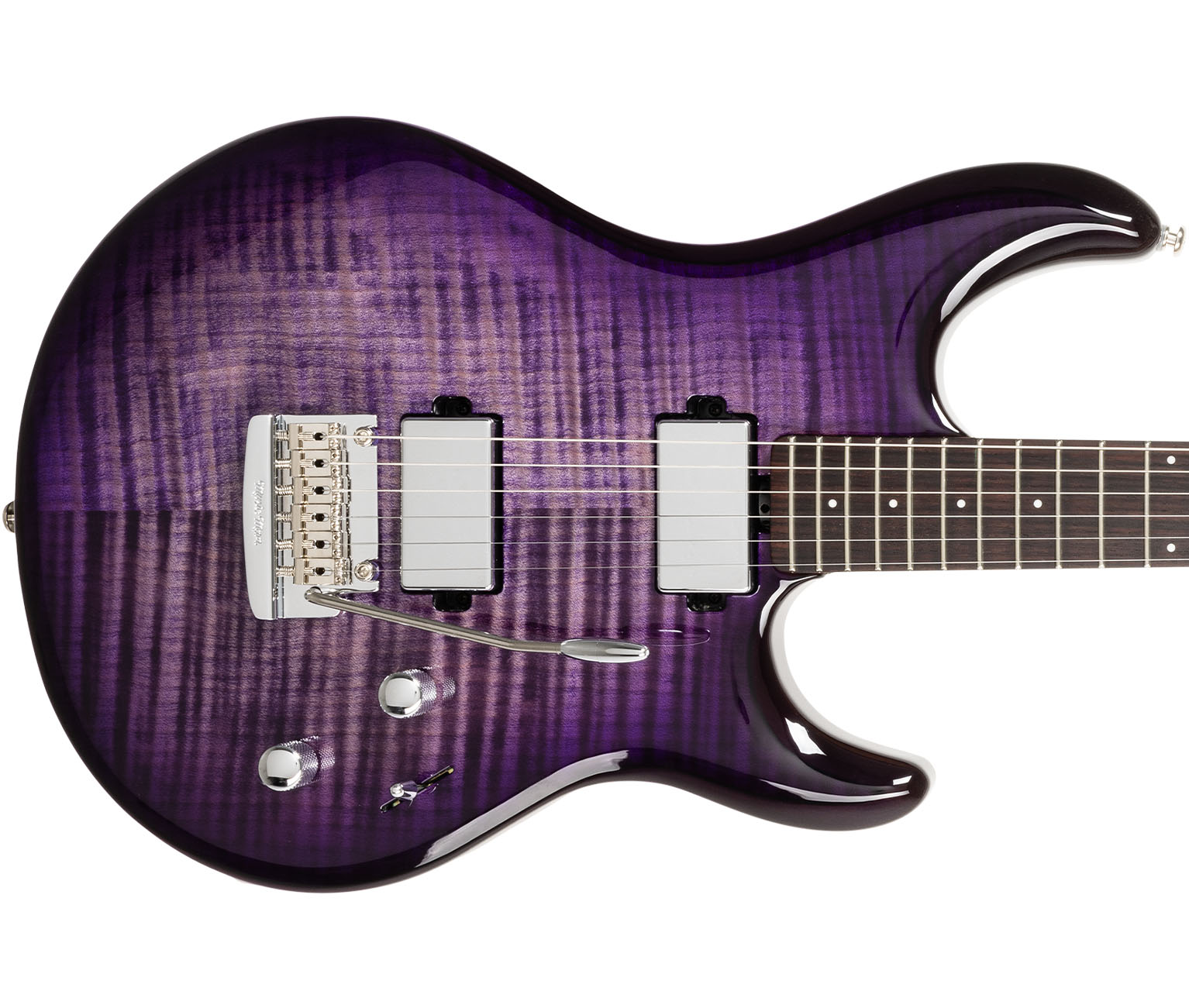

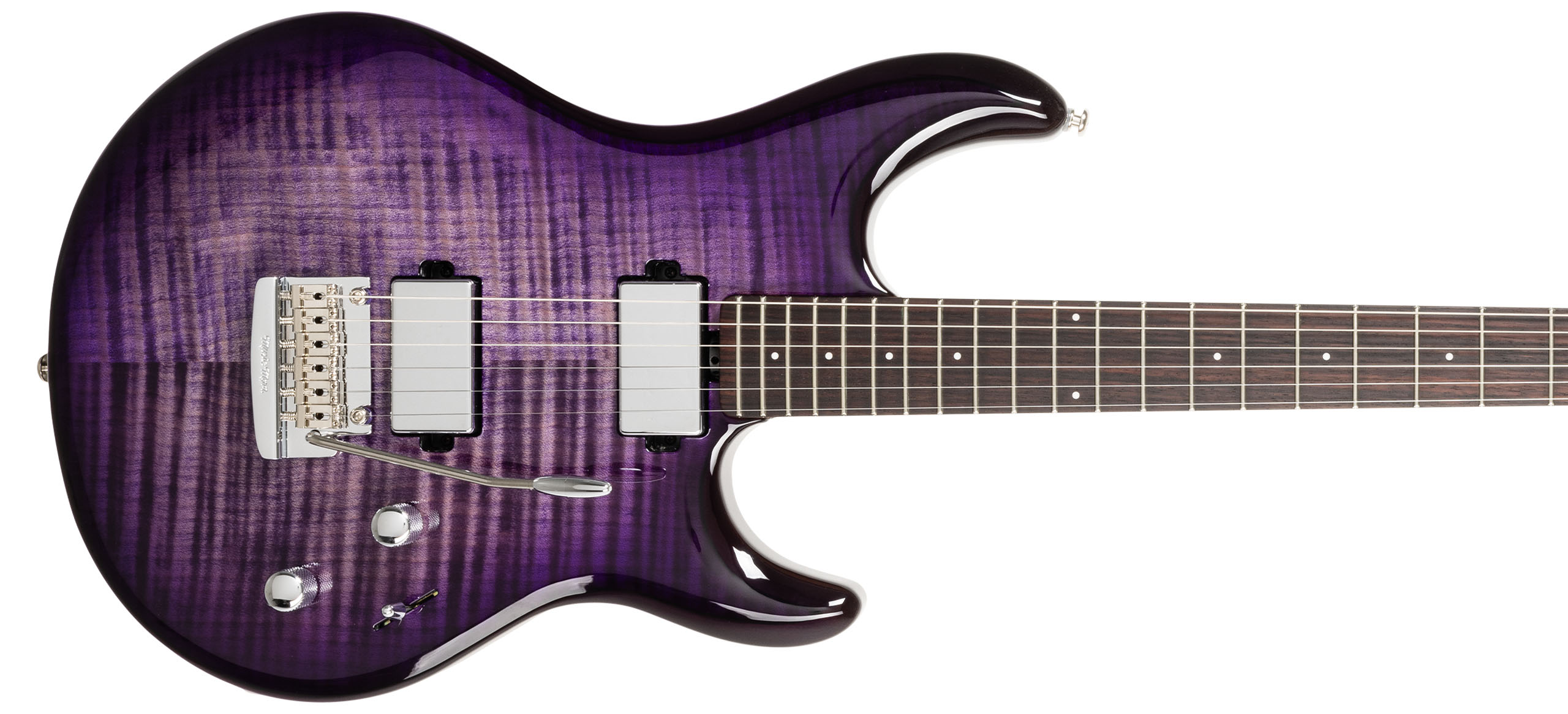

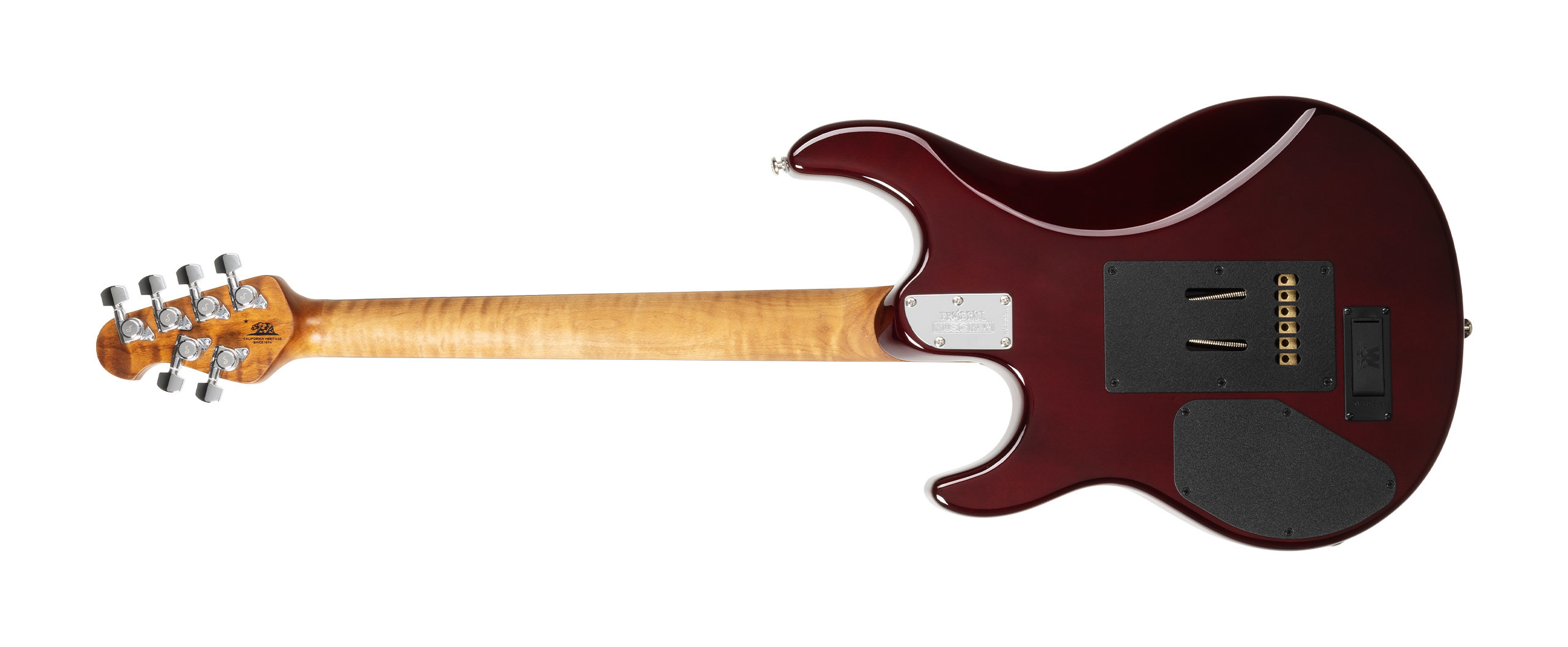

The Luke 4's double-cutaway design features a balanced, resonant Okoume body for extreme playing comfort. The premium roasted maple neck is beautifully figured and features a soft "V" profile that comfortably fits in the palm of your hand.

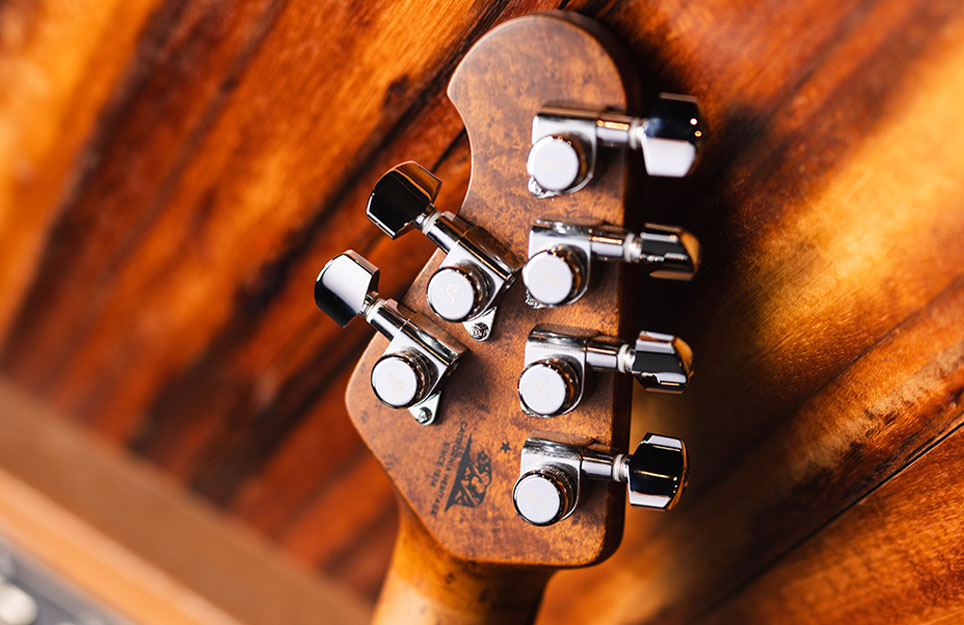

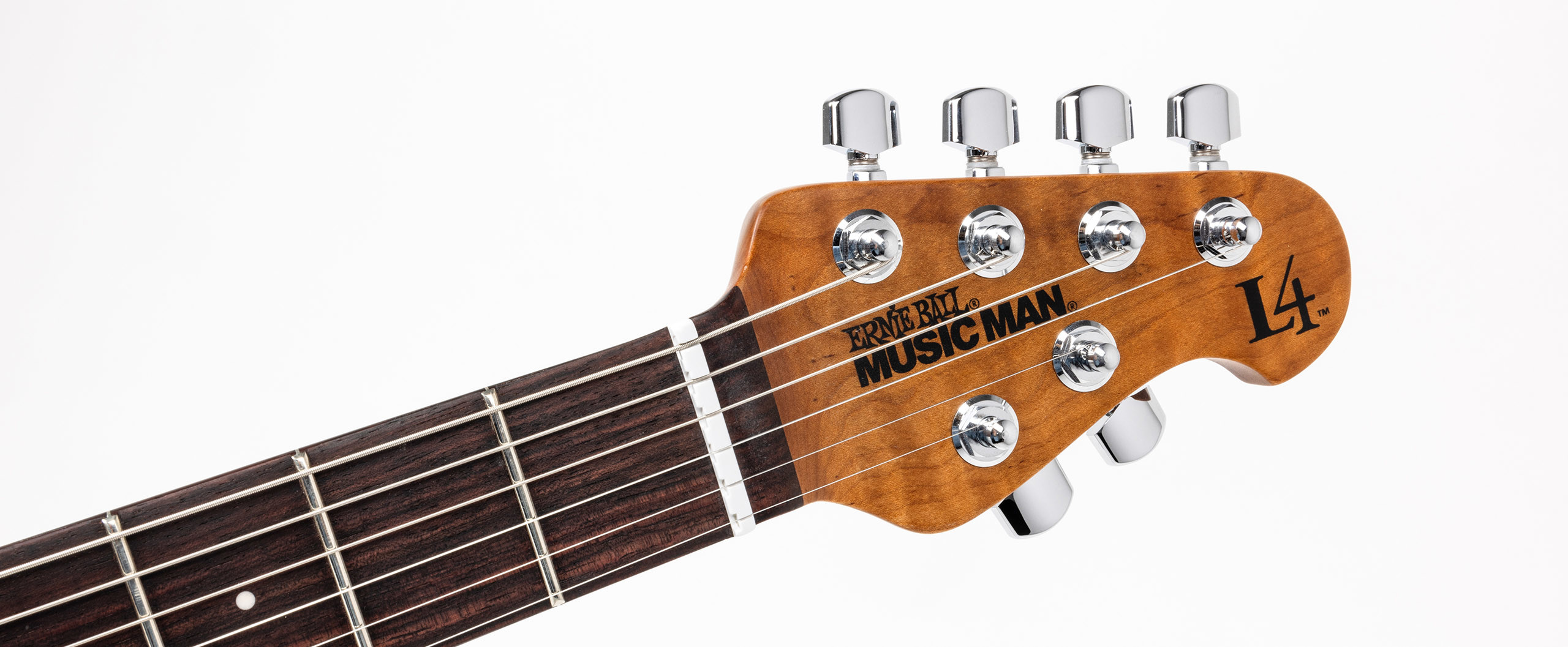

The Luke 4 features Schaller M6-IND locking tuners in Chrome.
| Specifications | Luke 4 HH Maple Top |
|---|---|
| Model | Luke 4 HH Maple Top |
| Size | 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long) |
| Body Wood | Okoume with Flame Maple Top |
| Body Finish | High gloss polyester |
| Body Colors | Grape Slushie, Afterburn |

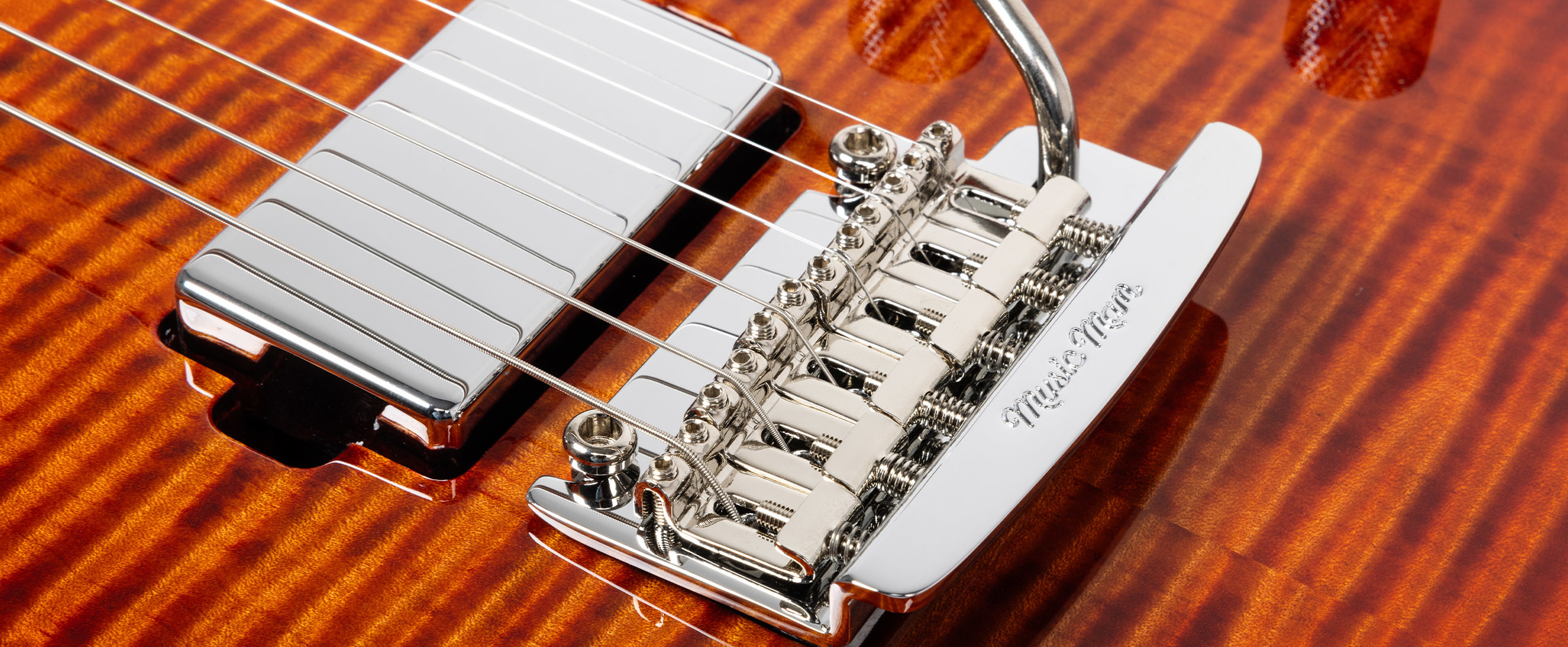

| Bridge | Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles |
| Scale Length | 25.5" |
| Neck Radius | 12" |
| Frets | 22 - Low profile, wide - Nickel |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile. |
| Neck Wood | Figured Roasted Maple |
| Fingerboard | Rosewood |
| Fret Markers | White Corian 1/8" Dots |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Tuning Machines | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |

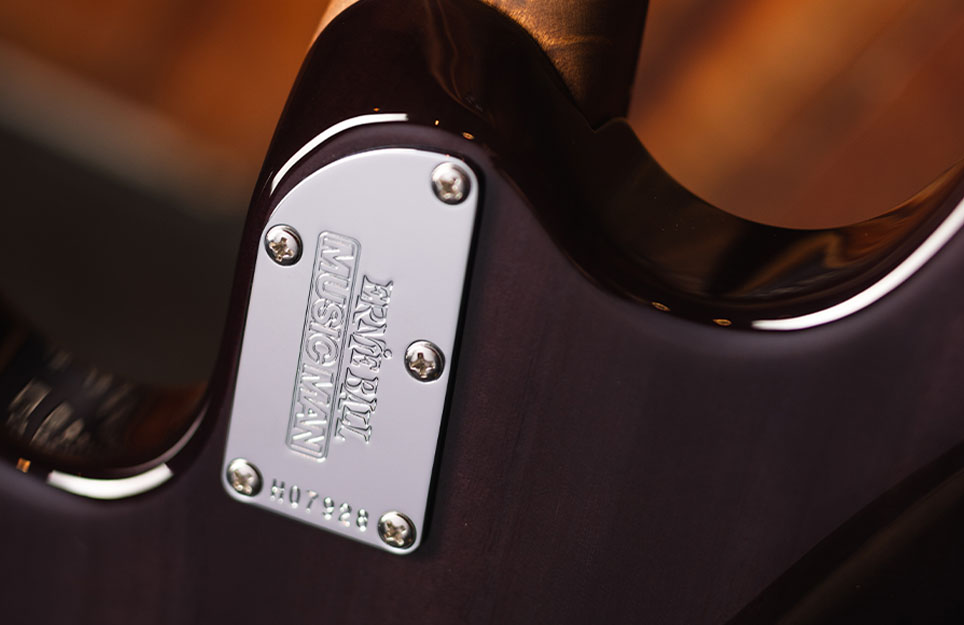

| Neck Attachment | 5-bolt, sculpted neck joint |

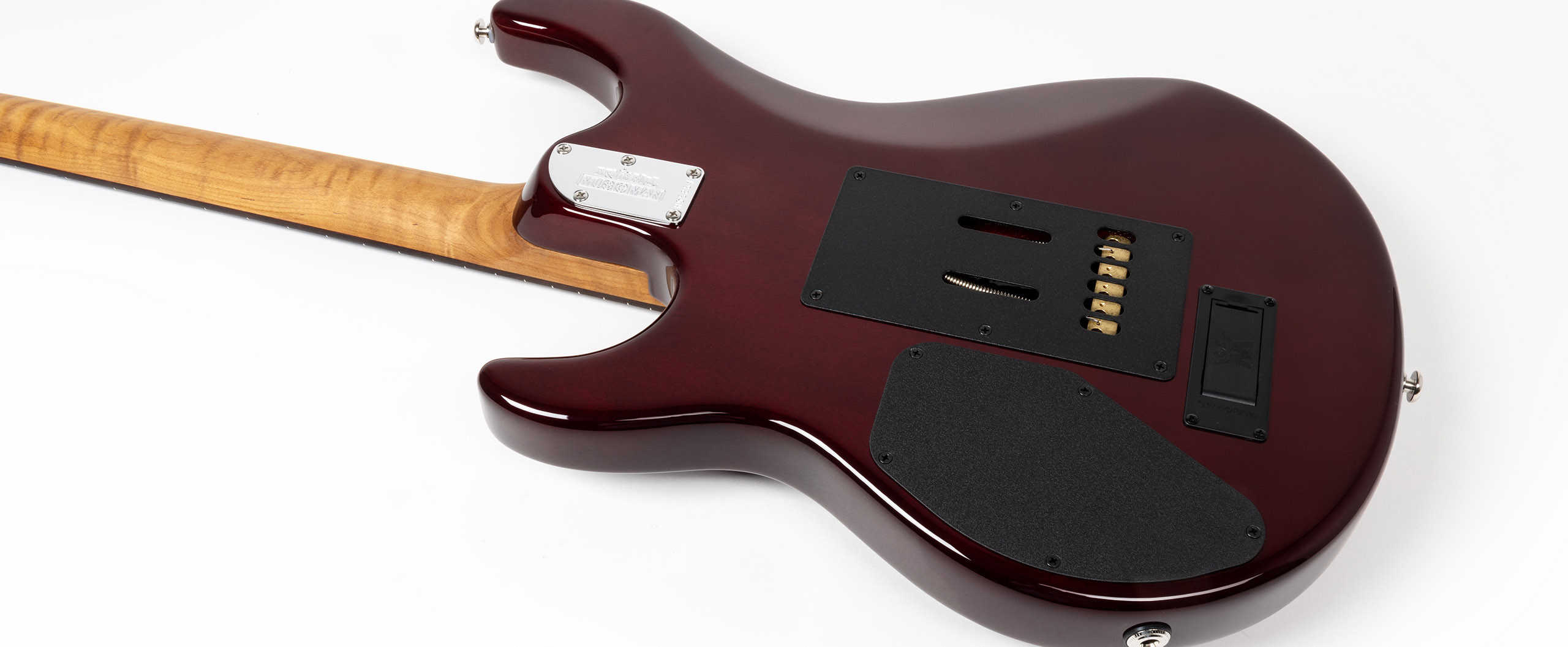

| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover |
| Controls | Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch |
| Switching | Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch. |
| Pickups | Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker |
| Left Handed | No |
| Strings | Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
