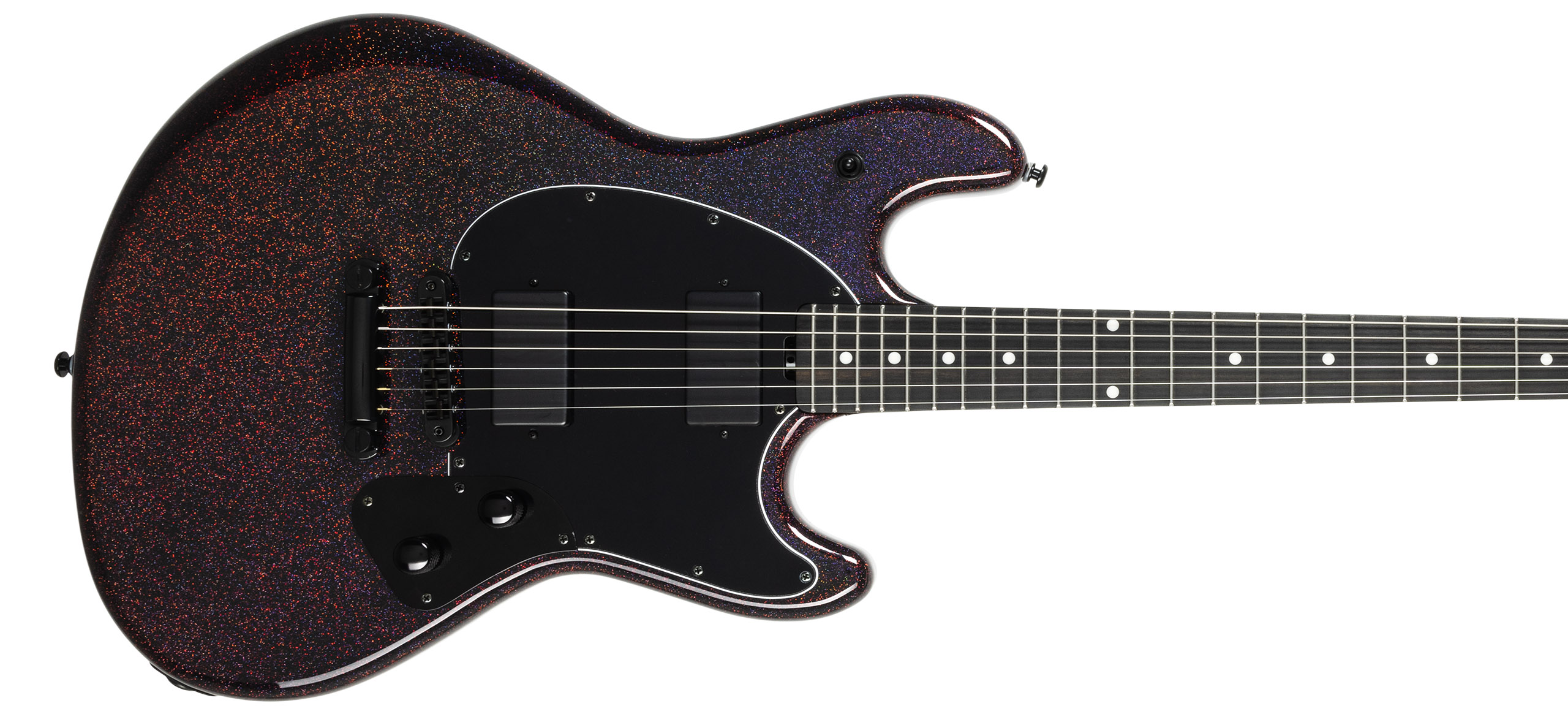

The Ernie Ball Music Man StingRay HT guitar is the newest edition to the ever-growing family of Ernie Ball Music Man instruments. Featuring the familiar shape and feel of previous StingRay guitar models, the StingRay HT showcases new custom Music Man pickup technology inspired by over a decade of guitar string research delivering an incredibly dynamic and responsive playing experience. The pickups are able to achieve an ultra-high-output, powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels. The StingRay HT (Heat Treated) bridge pickup utilizes patent-pending heat-treated pole pieces with a large ceramic magnet and an overwound coil that gives the pickup higher frequency harmonics and excellent touch sensitivity. The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the StingRay's HT bridge pickup. In addition, the electronics package includes a push-push adjustable 20dB boost function and a transparent buffered output for complete tonal consistency wherever your volume control is set. This StingRay HT is outfitted with a stop tail Tune-o-Matic bridge which sets it apart from the StingRay's vintage style tremolo but shares a number of the standard specifications, including a contoured body, a roasted figured maple neck, 22 stainless frets, and Schaller locking tuners.
Night Crawler
Golden Delicious
Mystique
Dark Rainbow
Incorporating the principles and insights that contributed to the development of Cobalt and M-Steel Slinkys resulting in a new material-based innovation for pickups
Outperforms normal spec pickups by providing extra output and excellent touch sensitivity

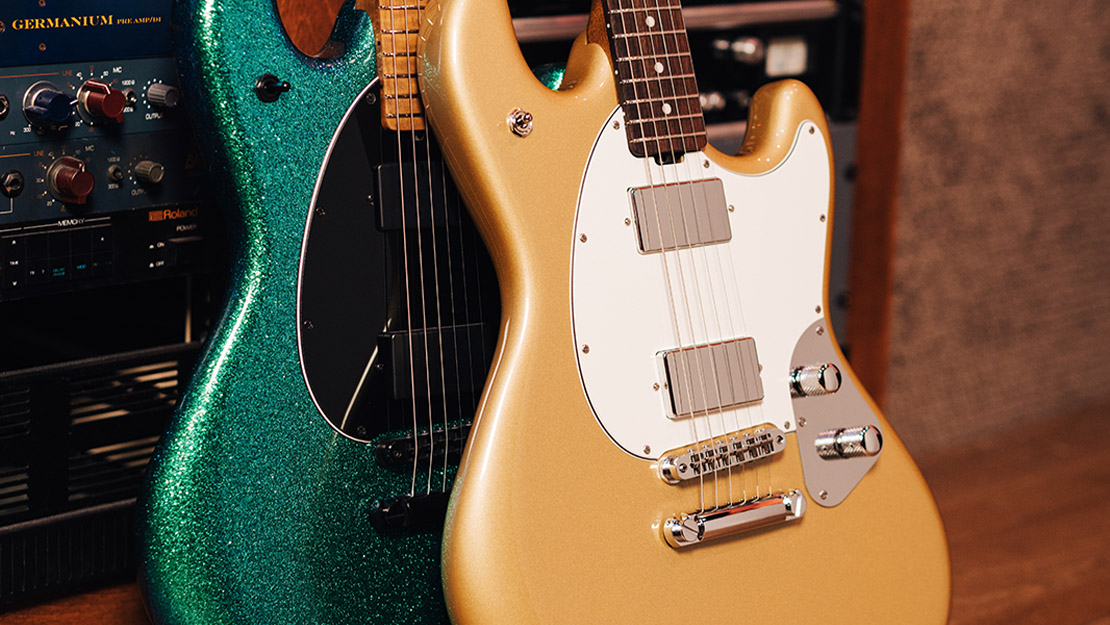

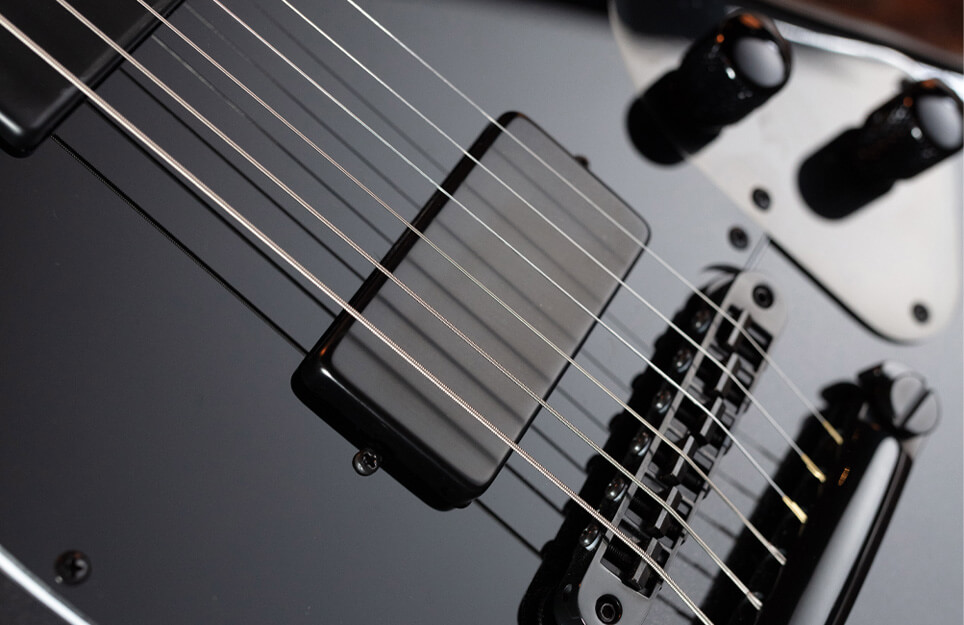

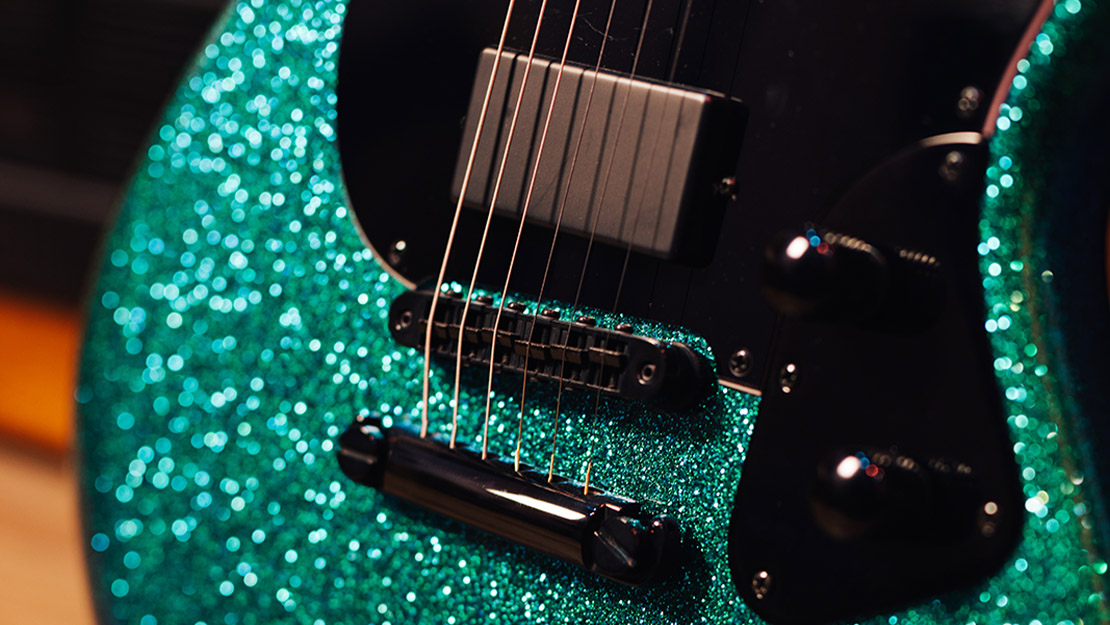

The Stingray HT (Heat Treated) bridge pickup not only achieves ultra-high output but also garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

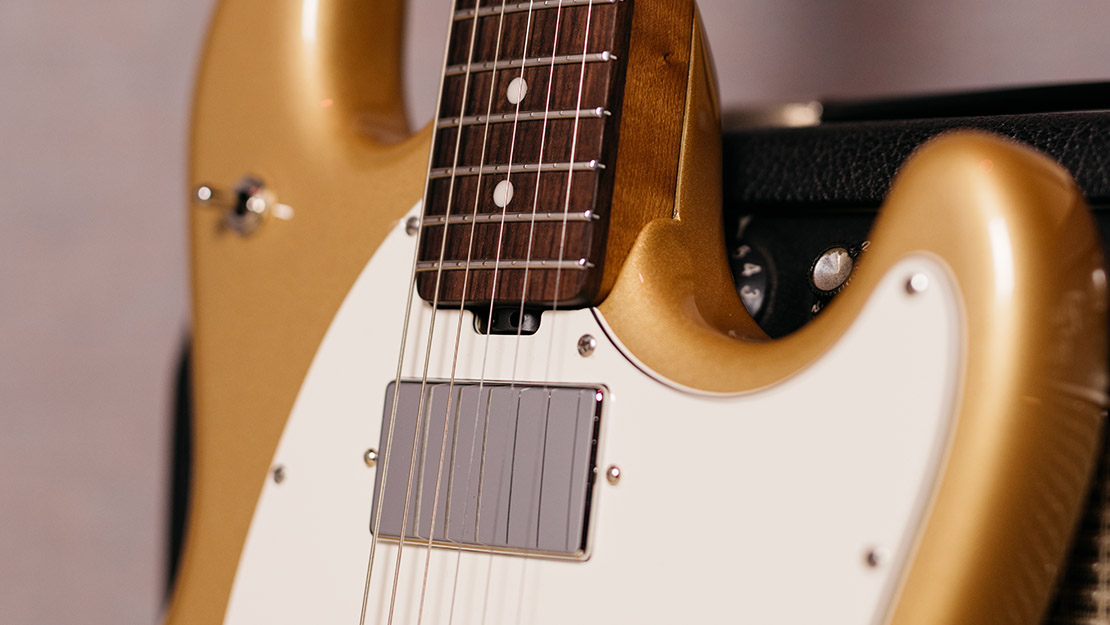

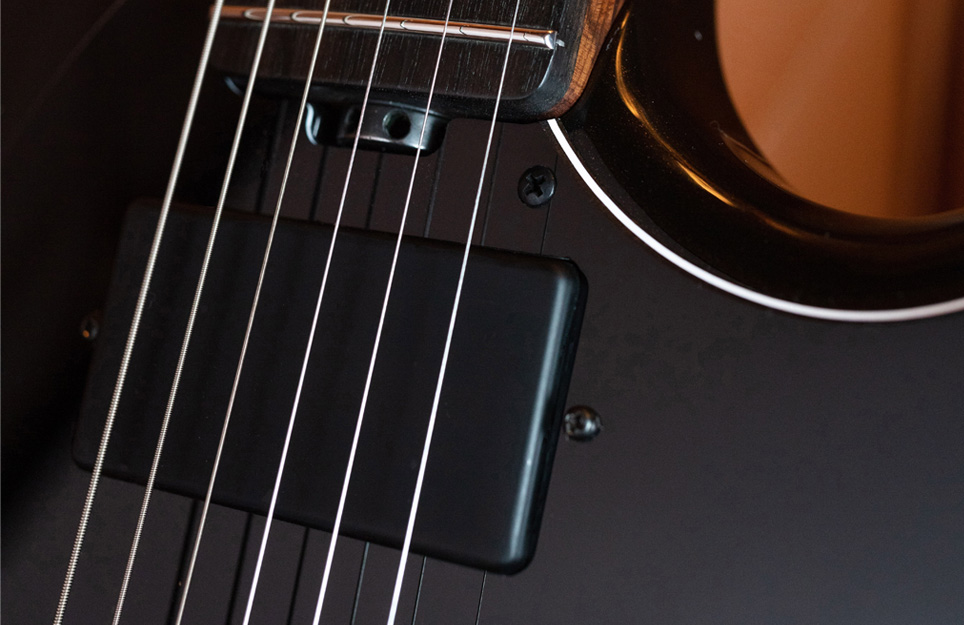

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Stingray's HT bridge pickup.

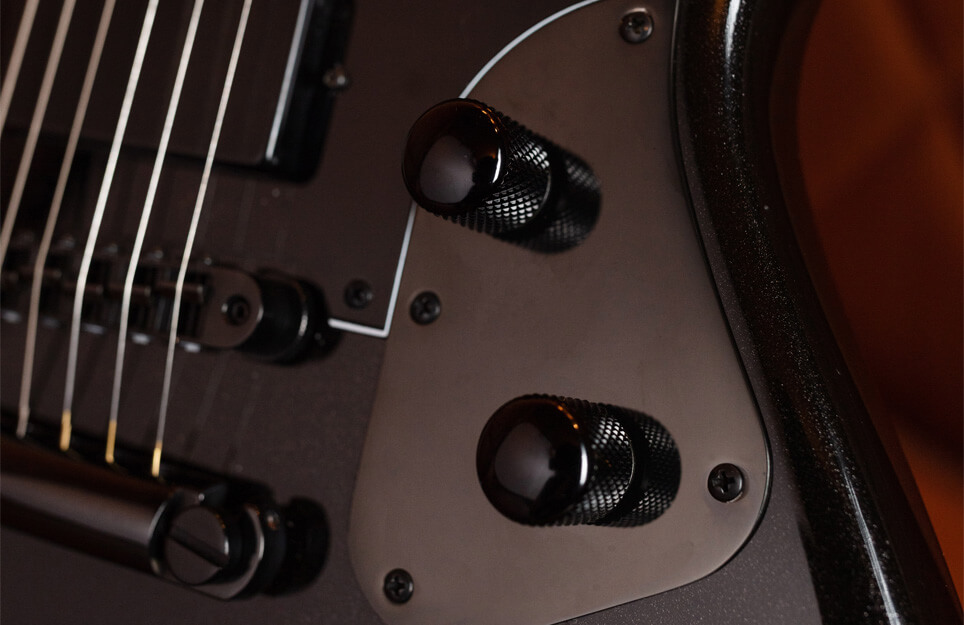

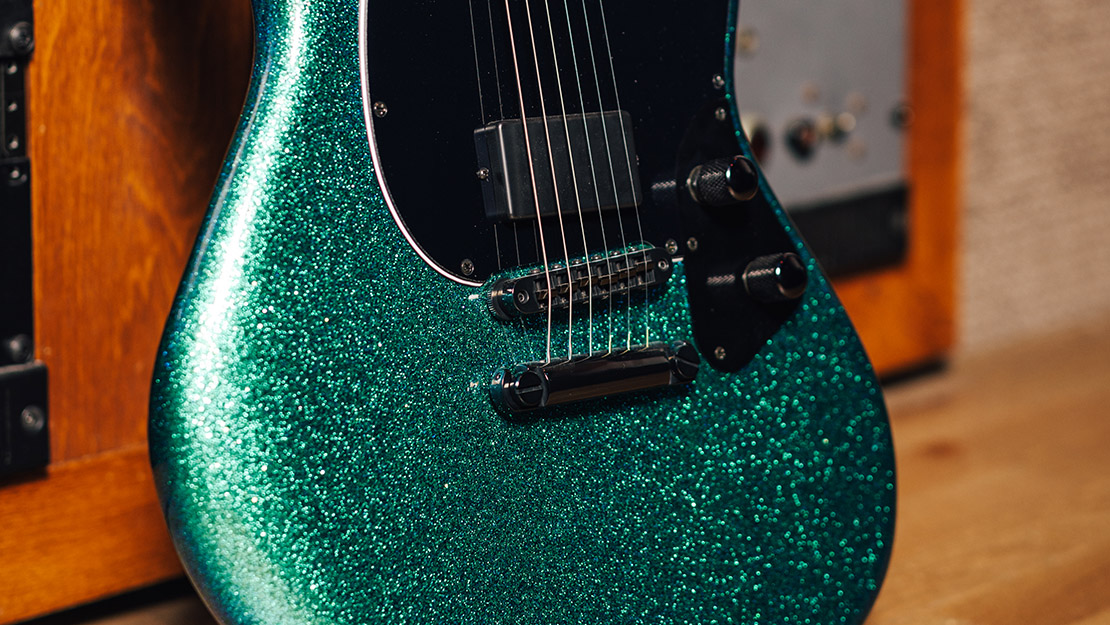

The Stingray HT preamp boost is activated by a push-push volume knob and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high octane soloing whenever the user chooses.

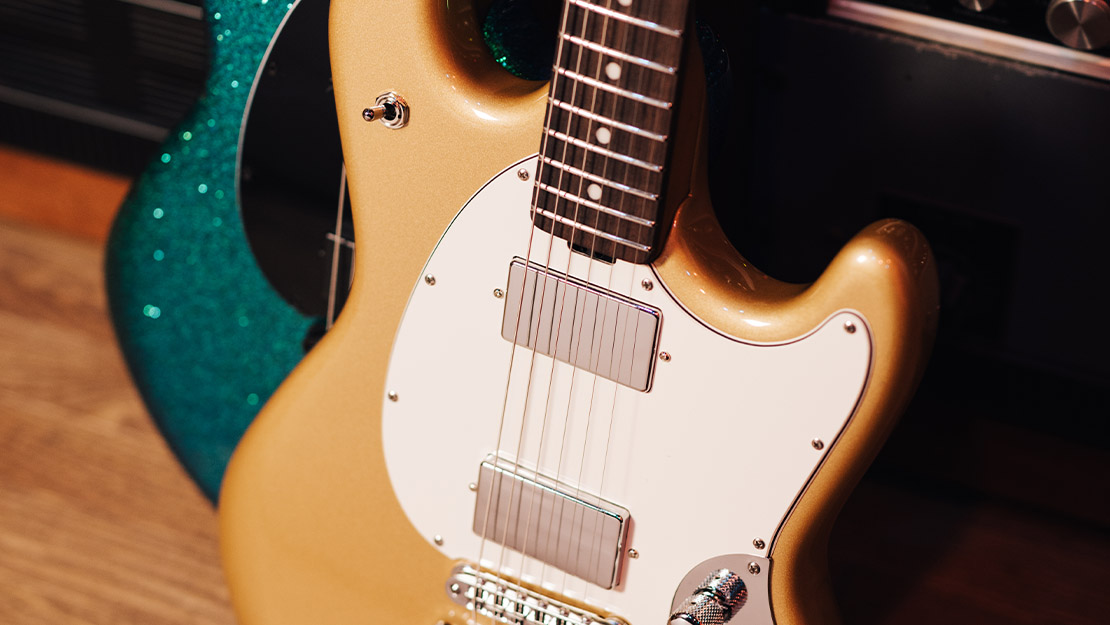

No matter where your volume control is set, the transparent buffered output preserves your signal from high-frequency loss and keeps your tone bright and strong.

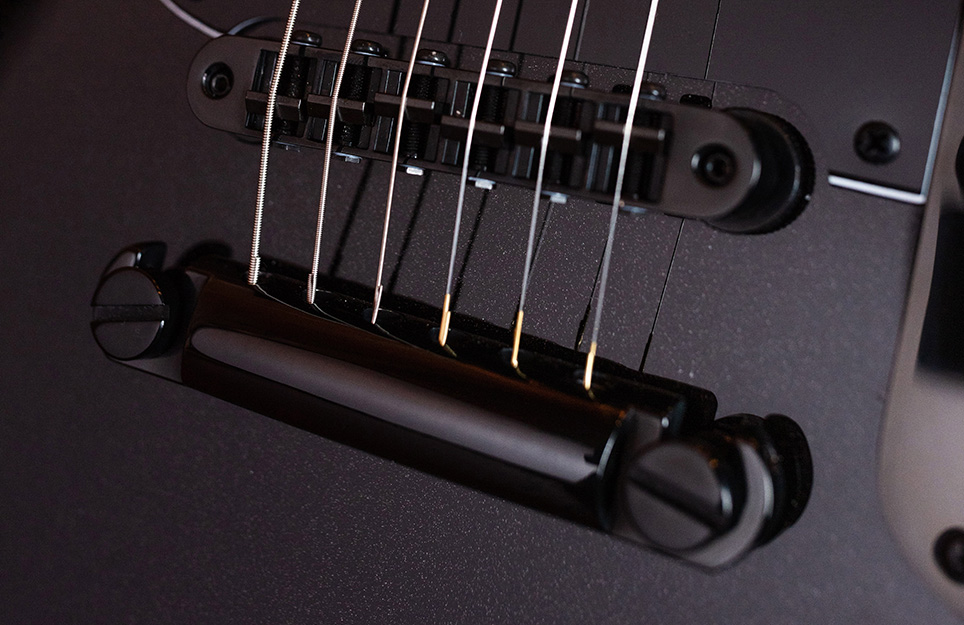

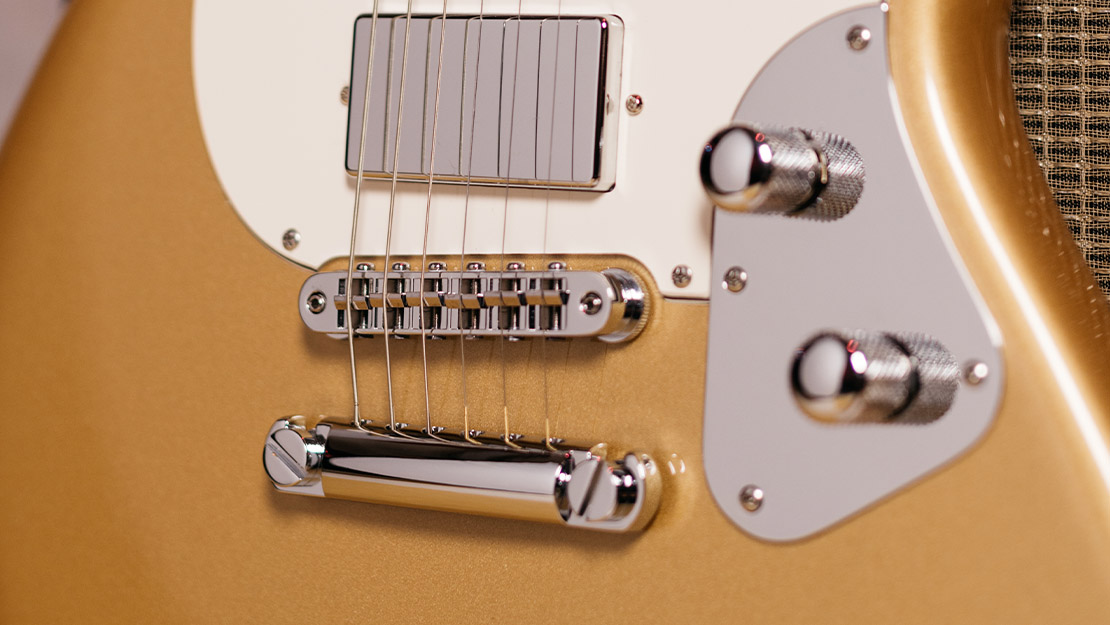

In use since the early 1950s, this popular bridge option is standard on the new Stingray HT. The Tune-o-Matic bridge is great for players who prefer a hardtail bridge option with great sustain and ease of string replacement.
| Specifications | StingRay HT |
|---|---|
| Model | StingRay HT |
| Size | 14-1/16" wide, 1-5/8" thick, 39-1/4" long (35.7 cm wide, 4.1 cm thick, 99.7 cm long) |
| Body Wood | Alder |
| Body Finish | High Gloss Polyester |

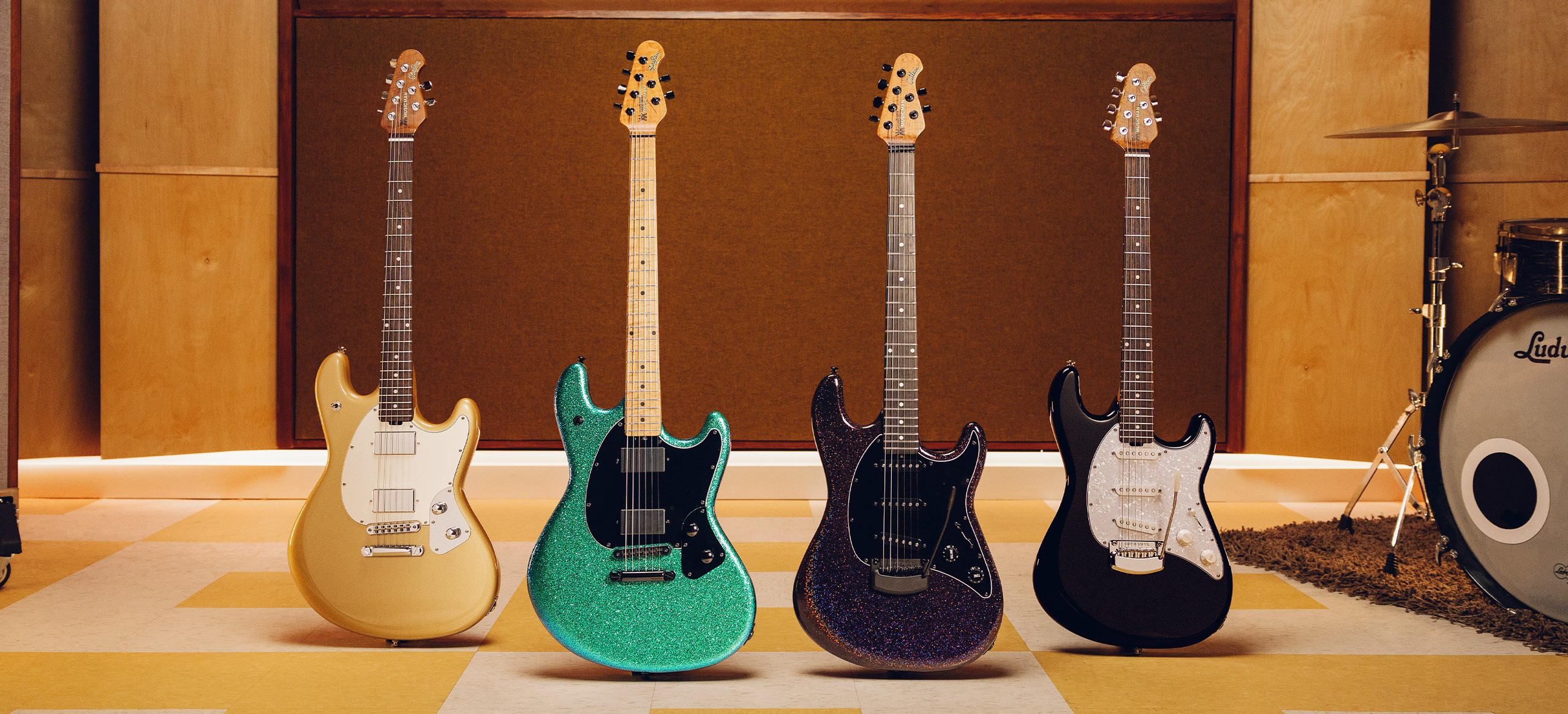

| Body Colors | Night Crawler, Golden Delicious, Dark Rainbow, Mystique |
| Pickguard | Black/White/Black |
| Scale Length | 25.5" |
| Neck Radius | 10" (25.4 cm) |
| Headstock Size | 6-3/8" (16.2 cm) long |
| Frets | 22 - High Profile, Medium Width, Stainless Steel |
| Neck Width | 1-5/8" (41.3 mm) at nut; 2-1/4" (56.9 mm) at last fret |
| Neck Wood | Roasted Figured Maple |
| Fingerboard | Figured Roasted Maple (Mystique); Ebony (Dark Rainbow); Rosewood (Night Crawler, Golden Delicious) |
| Fret Markers | Dot |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Neck Colors | Natural |
| Tuning Machines | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolt, sculpted neck joint |
| Controls | Volume knob with push/push switch for gain boost, tone knob, 3 way pickup selector switch. |
| Switching | 3-way toggle pickup selector; Push/push volume pot for boost |
| Pickups | Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker |
| Left Handed | No |
| Strings | 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240) |
