Crafted in partnership with Darkglass Electronics, renowned for their expertise in bass accessories, the DarkRay unleashes a universe of sonic innovation.

At its core lies a cutting-edge 2 Band EQ preamp, custom-crafted by Darkglass, offering three distinct modes: Clean, Alpha (distortion), and Omega (fuzz). Dial in your perfect tone with the onboard gain knob and blend control, seamlessly mixing pristine cleans with aggressive fuzz, all while keeping that low-end power intact. An intuitive LED ring and 3-way lever switch make mode selection a breeze.

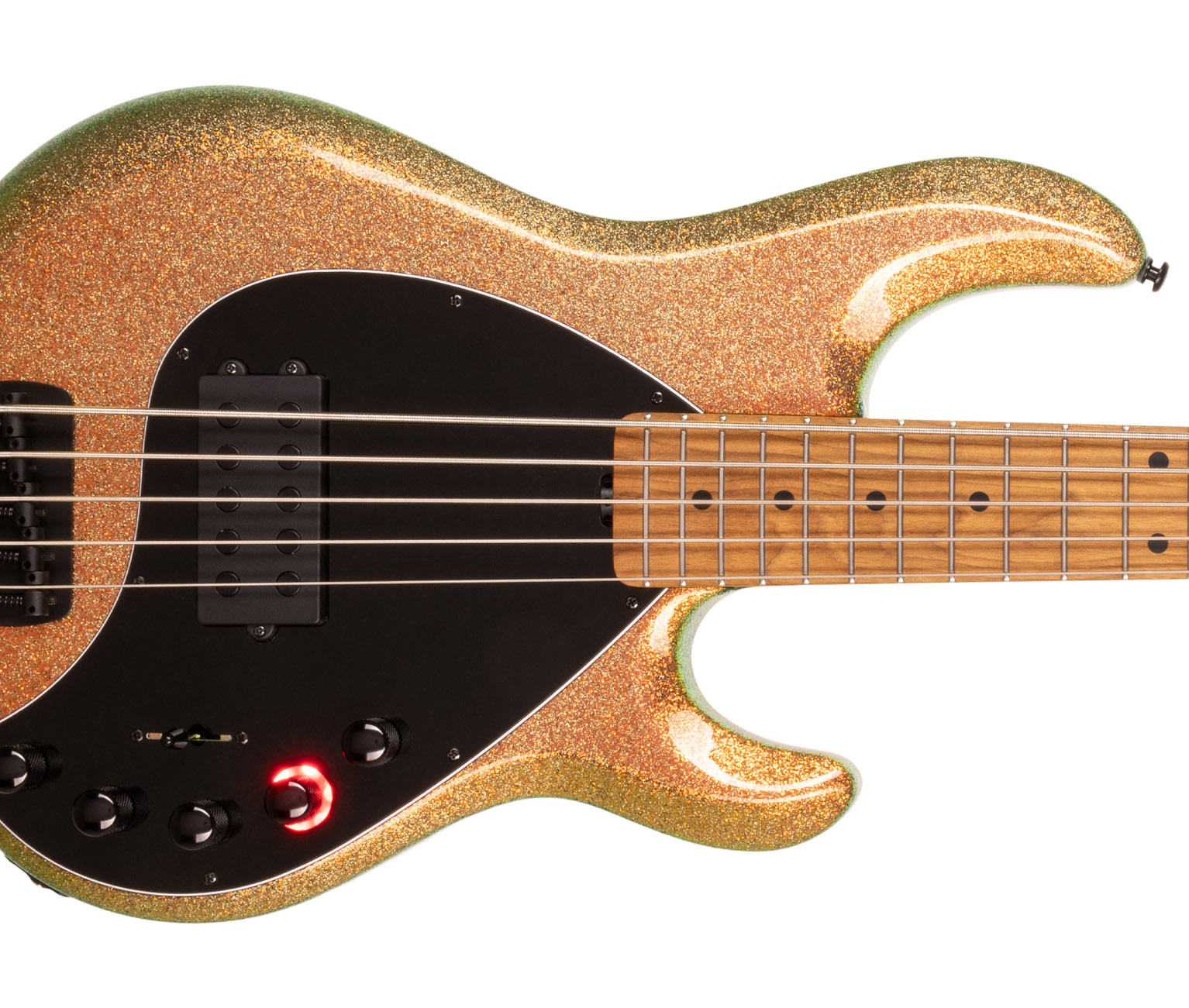

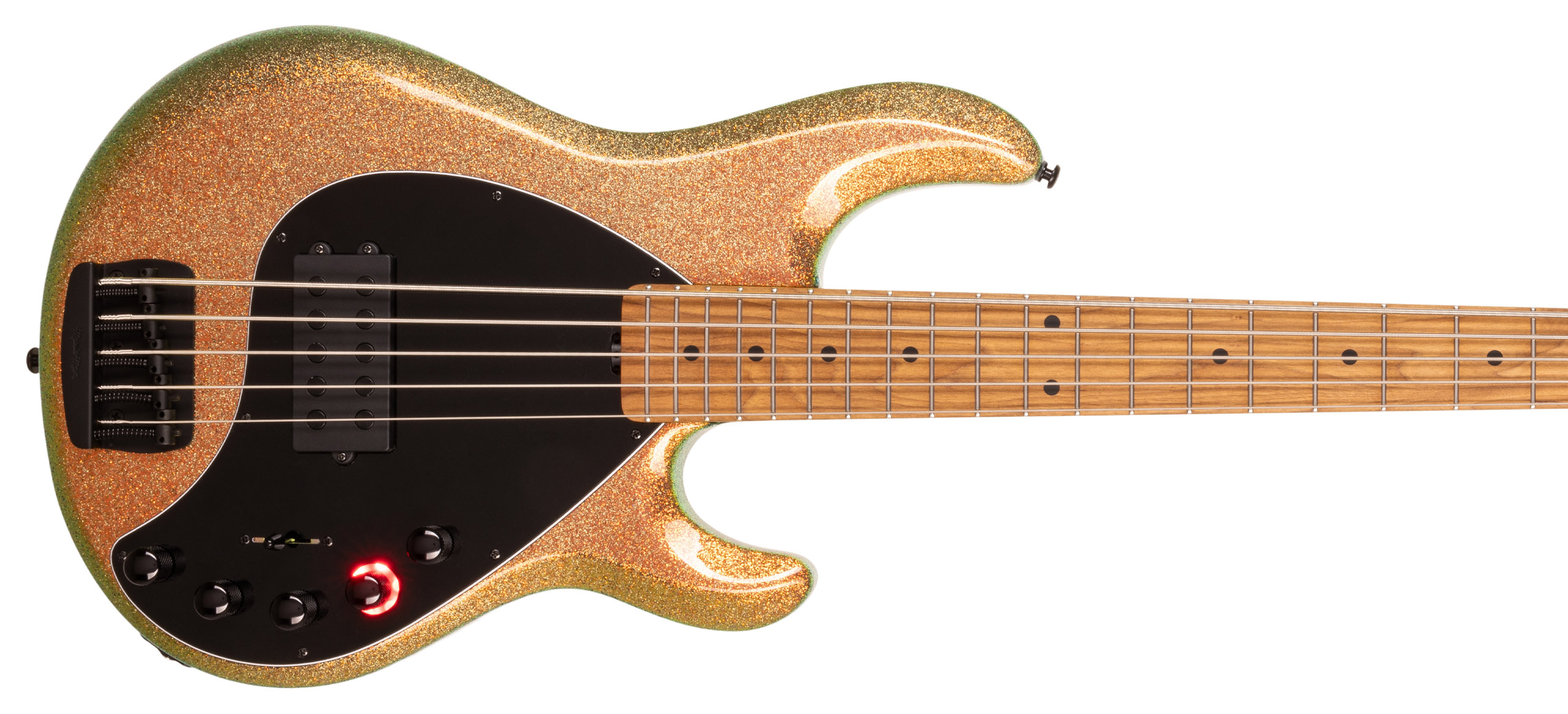

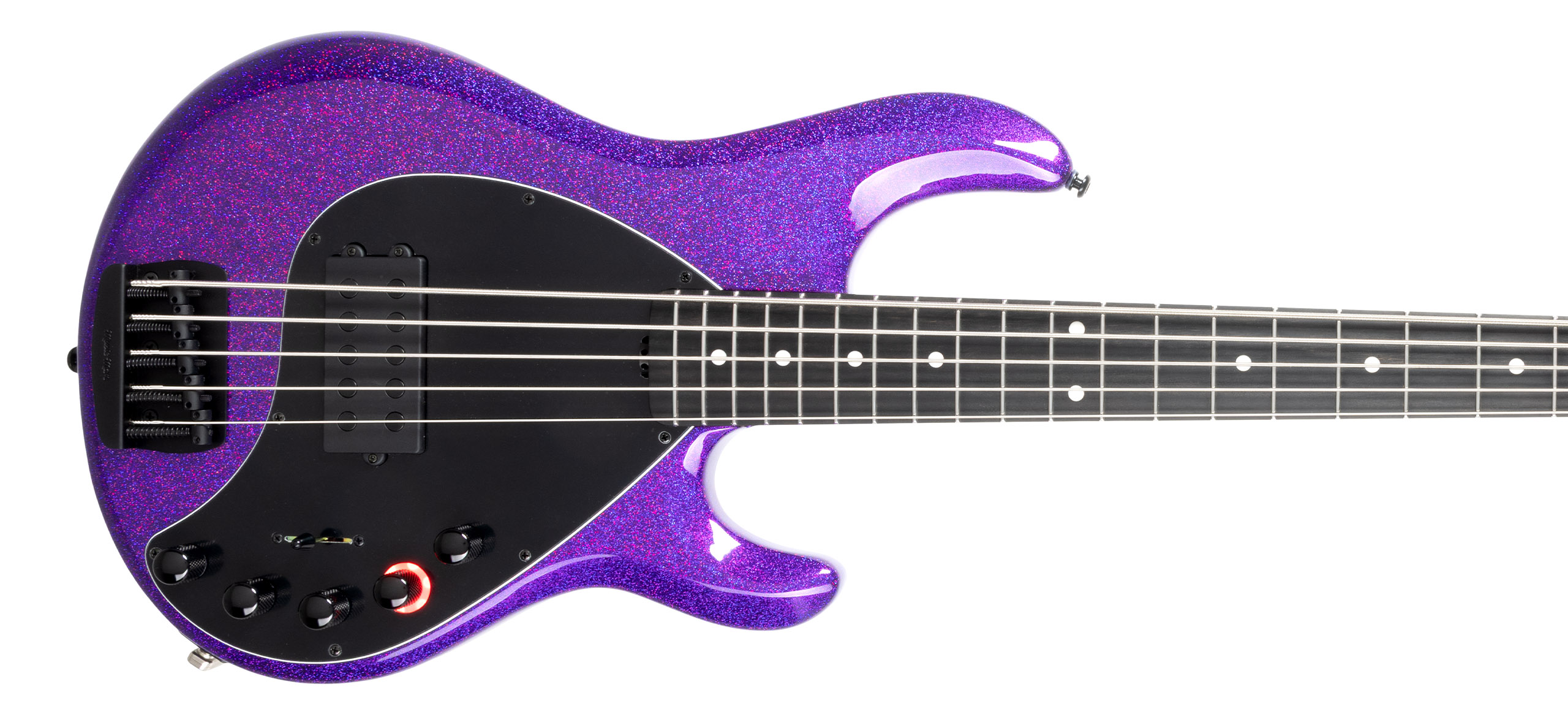

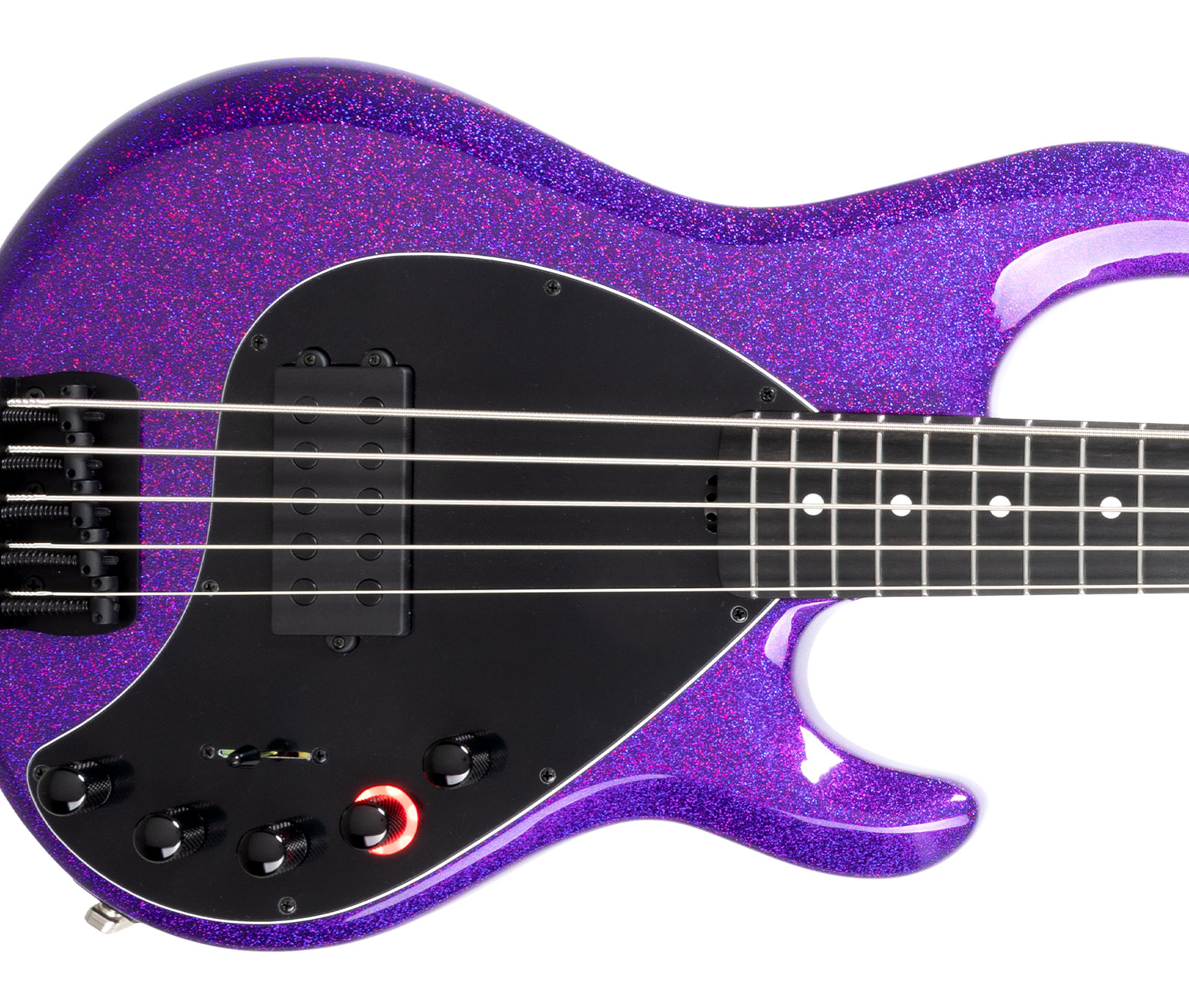

The DarkRay is every bit a Stingray Special and boasts a neodymium humbucking pickup, roasted maple neck, sleek contoured body, 22 stainless steel frets, and that iconic 3+1 headstock configuration.

DarkRay 5 Logo

OPTIONS

Dark Rainbow

Gold Bar

Starry Night

Your Custom Options:

Model:
Color:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

STREET PRICE

$0.00

Guitar Center

(855) 770-3373

Buy Now
American Musical Supply

(800) 458-4076

Buy Now
Musician's Friend

(801) 501-8110

Buy Now
Willcutt Guitars

(859) 276-4070

Buy Now
Bass Central

(407) 740-5619

Buy Now
Dubaldo Music

(860) 649-6205

Buy Now
Eddie's Guitars

(314) 781-7500

Buy Now

DarkRay 5 Highlights

DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide
DarkRay 5 Slide

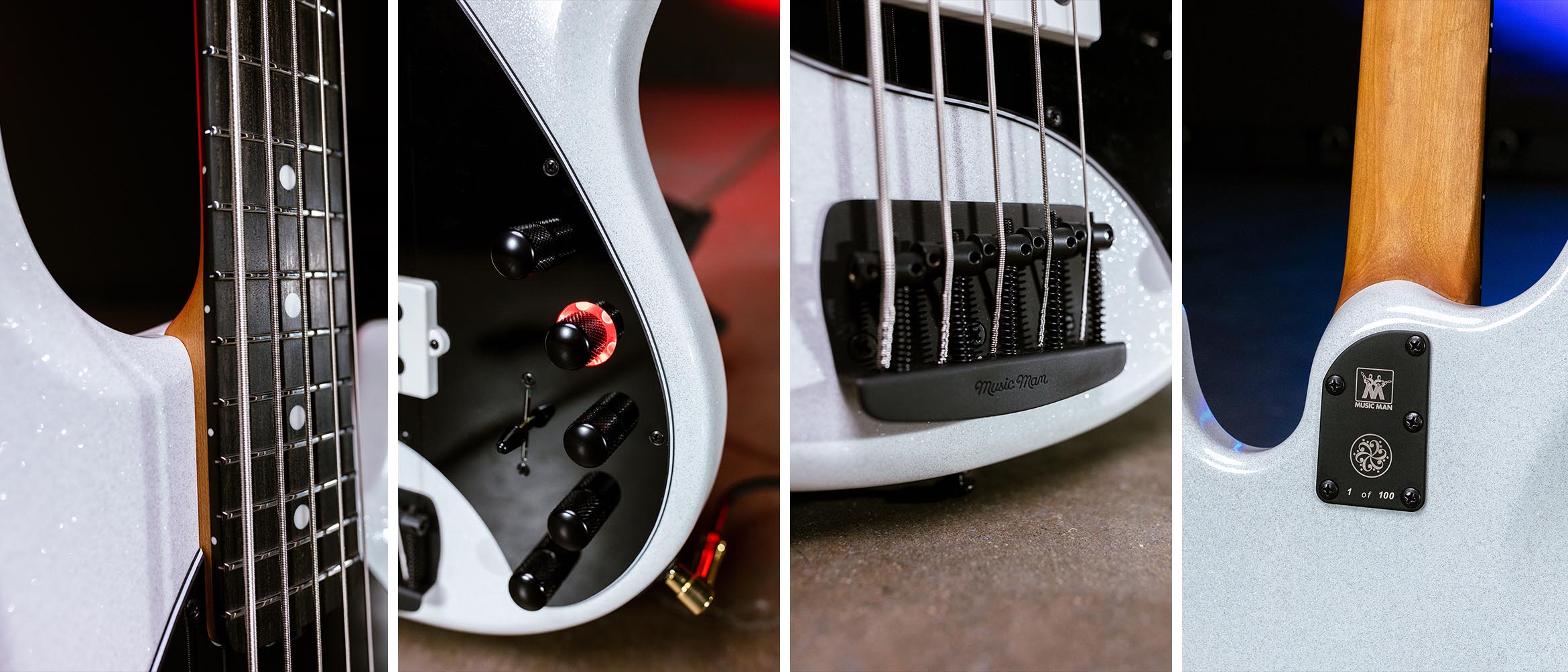

DarkRay 5 Highlight
DarkRay Preamp
The 2-band preamp includes volume, treble, and bass controls with a separate blend and gain knob to achieve the desired tone and output.
DarkRay 5 Highlight
Roasted Neck

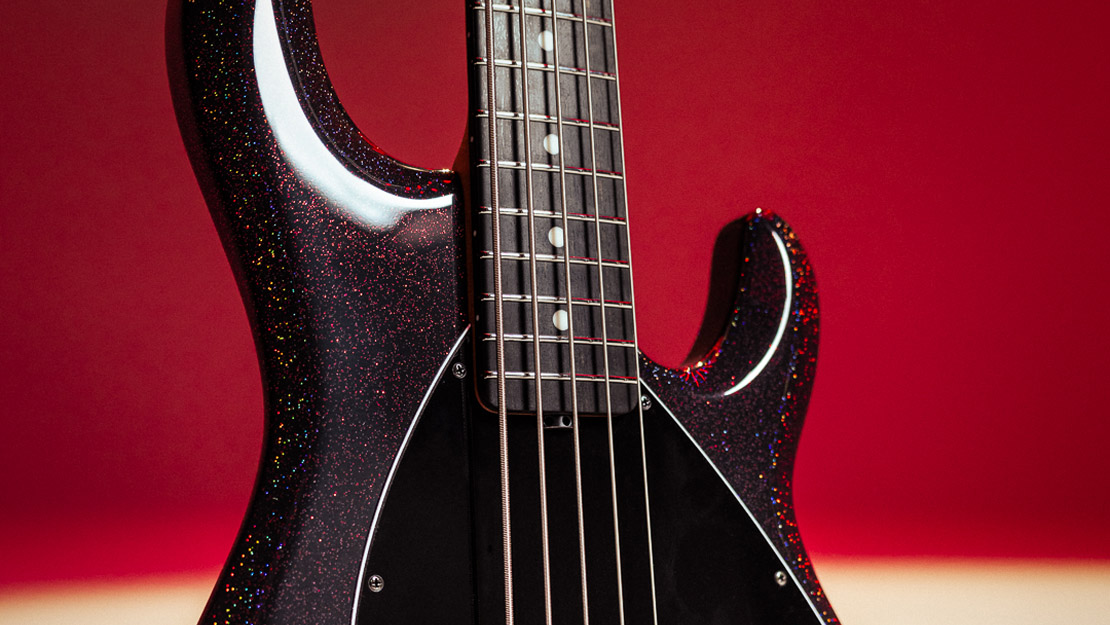

The DarkRay features a roasted maple neck, ebony fingerboard with stainless steel frets, and matte black hardware.
DarkRay 5 Highlight

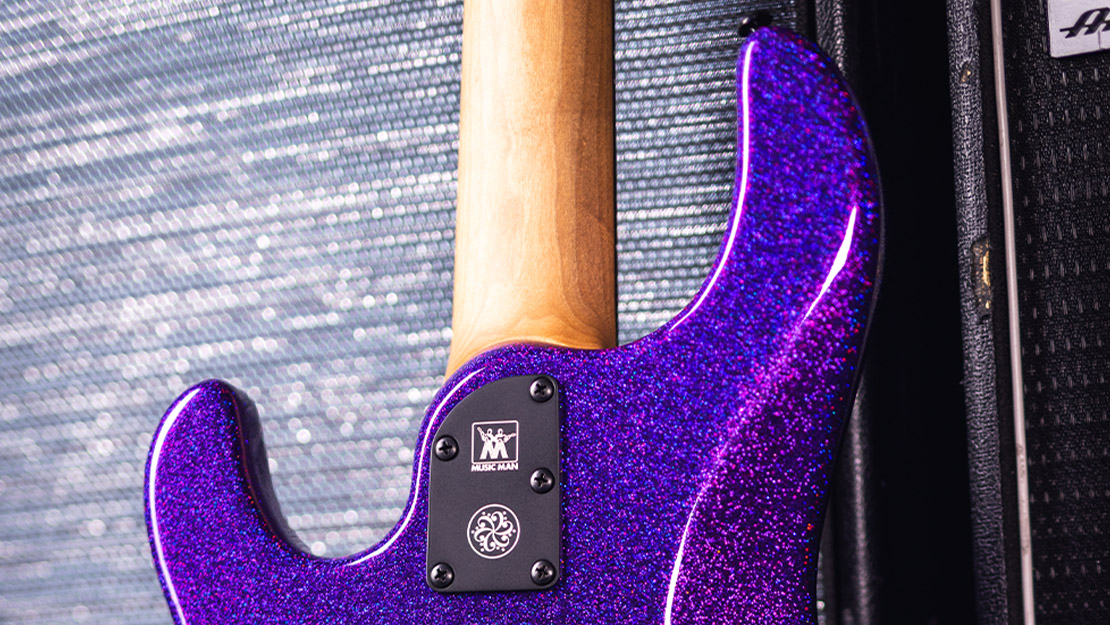

5-Bolt Neck
The neck is secured by a 5-bolt attachment with perfect alignment and no shifting. A special Darkglass logo is applied to the neck plate to signify the Darkray edition bass.

StingRay Meets DarkGlass

Custom Darkglass® clean 2-band active preamp

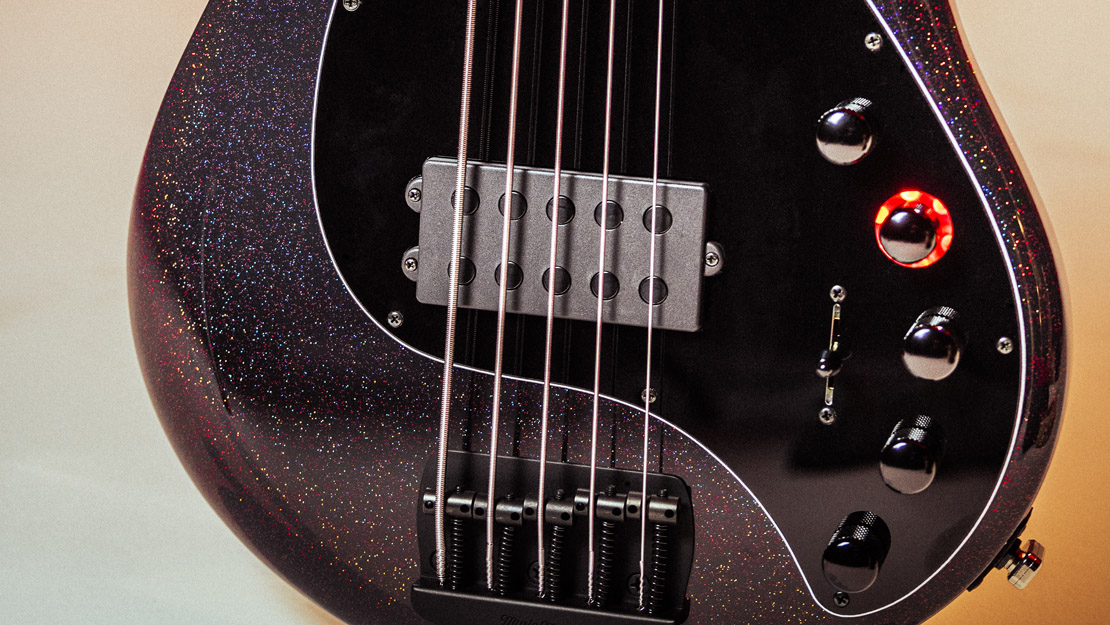

The DarkRay is equipped with a new modern 2 Band preamp that Darkglass specifically designed. The preamp is extremely clean and quiet with adjustable volume, gain, bass, treble, and blend controls to achieve the desired tone.

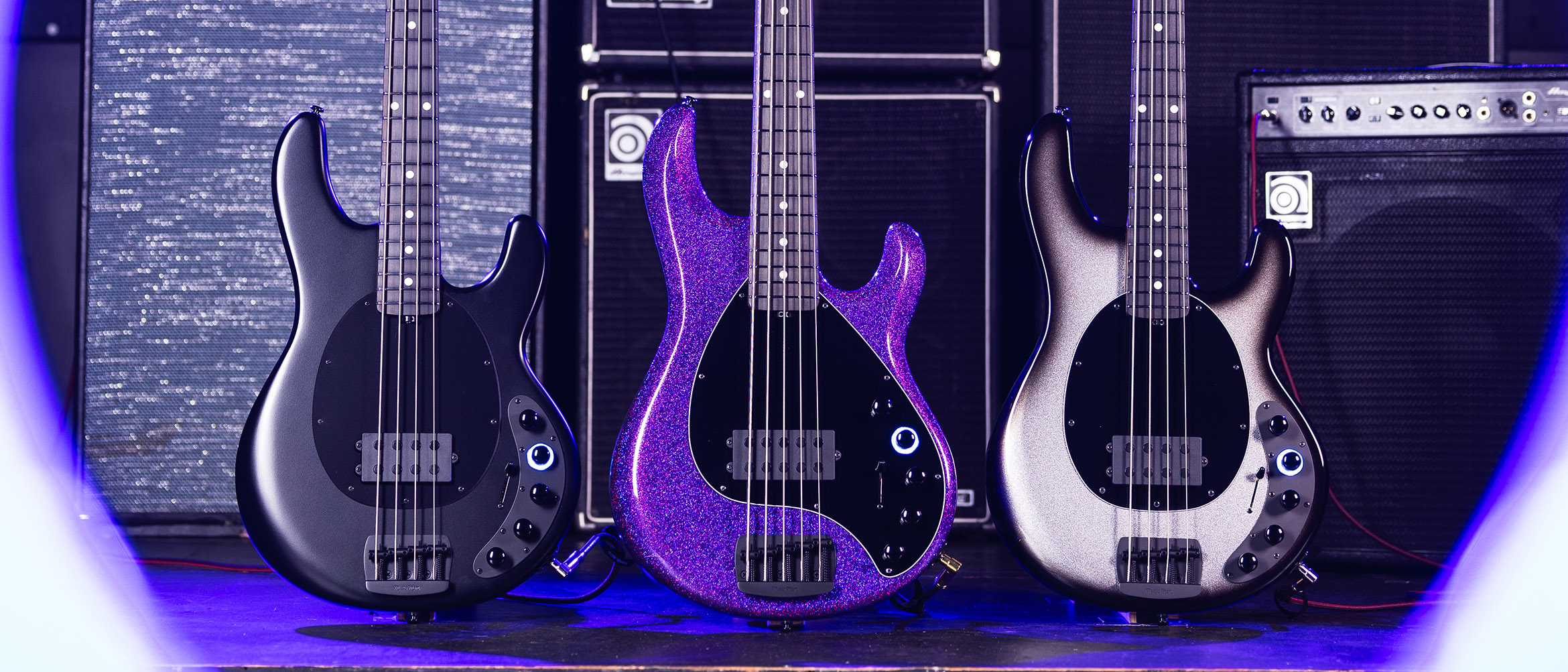

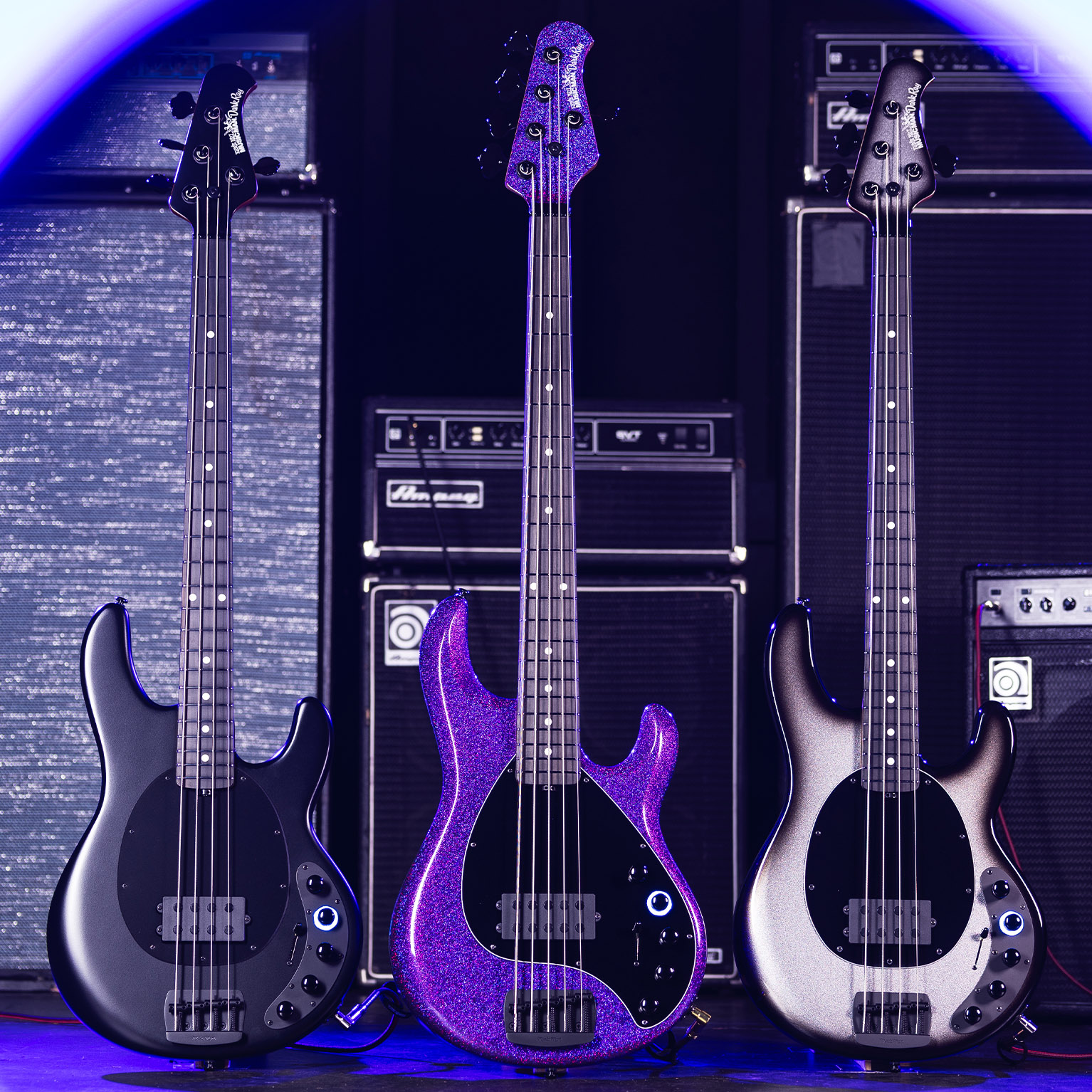

Alpha and Omega

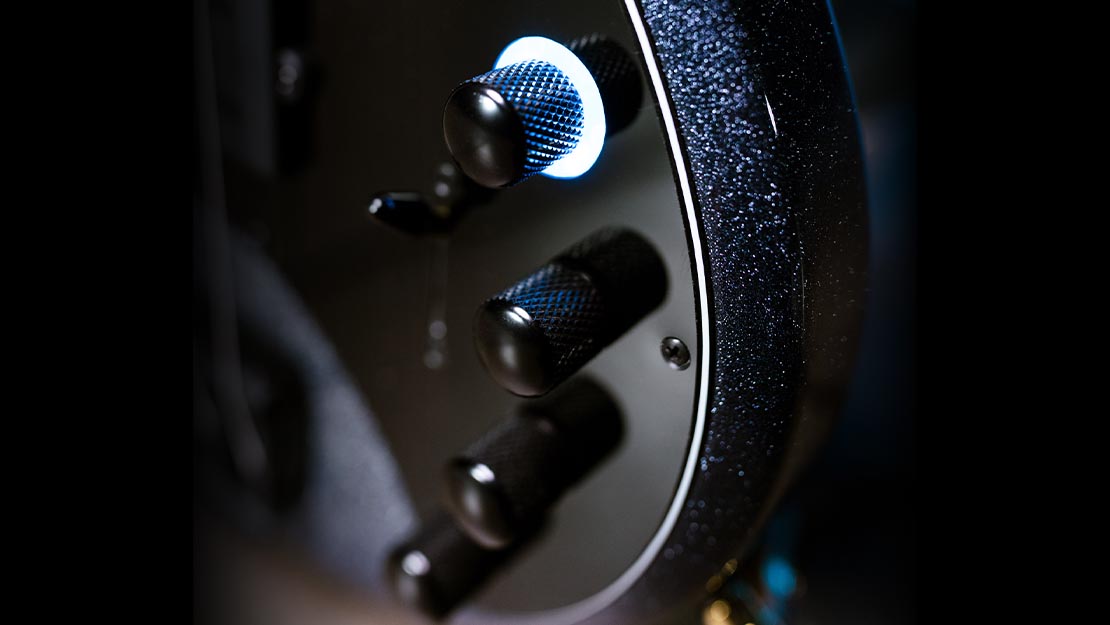

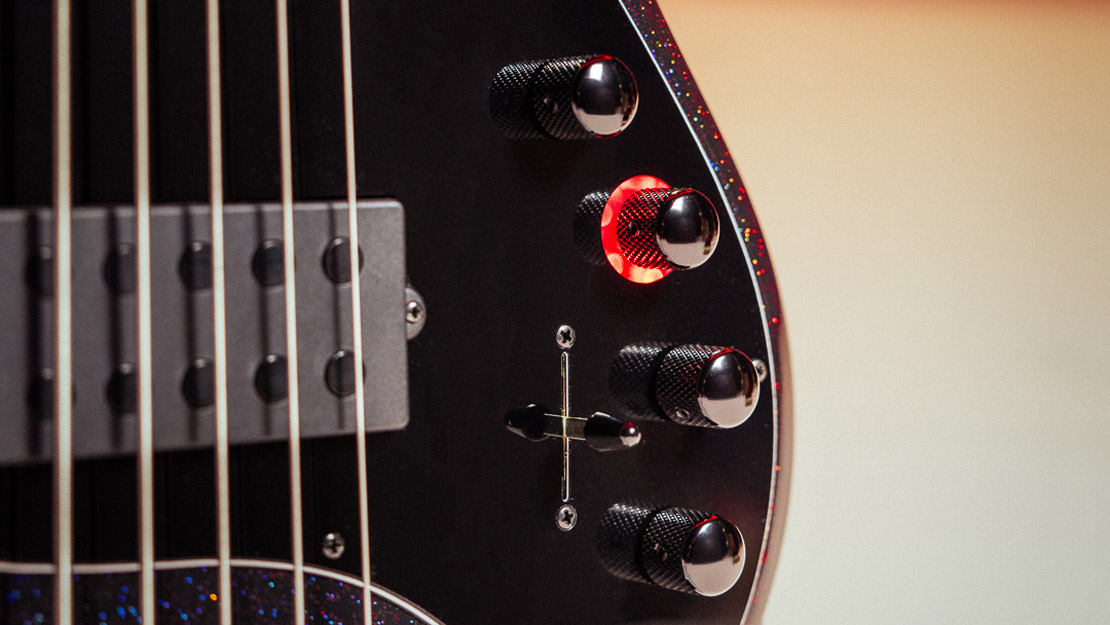

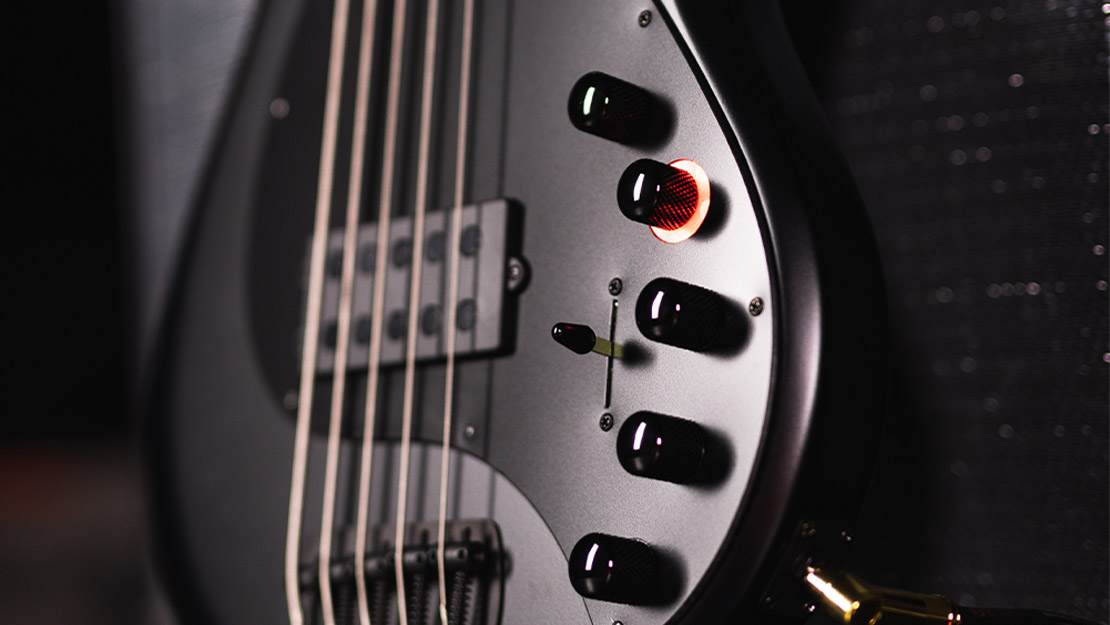

The Darkglass preamp offers two highly regarded drive circuits, Alpha(tight distortion) and Omega(fuzz). Both distortion circuits are fully mixable via an onboard gain knob and blend control manipulated to the user’s preference with no low-end loss. Via the 3-way lever switch, a bright color-coded LED ring is illuminated, signifying which mode the bass is in.

DarkRay = StingRay

The DarkRay bass is every bit a Stingray Special with neodymium humbucking pickup, roasted maple neck, comfort contoured body, 22 stainless steel frets, all black hardware, and the familiar 3+1 headstock configuration.

Specifications, Schematics & More

Specifications DarkRay 5
Model DarkRay 5
Size 13-3/8" wide, 1-5/8" thick, 45-3/4" long (34.0 cm wide, 4.1 cm thick, 116.2 cm long)
Body Wood Select Hardwood
Body Finish High Gloss Polyester
Bridge Vintage Music Man® top loaded Black plated, steel bridge plate with vintage Black plated steel saddles
Pickguard Black
Scale Length 34"
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide, stainless steel
Neck Width 1-3/4" (44.5 mm) at the nut; 2-3/4" (69.9 mm) at the last fret
Neck Wood Roasted Maple
Fingerboard Ebony (Roasted Maple on Gold Bar)
Fret Markers Dot
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls vol, gain, blend, treble, bass
Switching 3-way lever distortion selector; Preamp Only, Preamp+Alpha Distortion, Preamp+Omega Distortion
Pickups Single Humbucking with Neodymium magnets
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)

id => 103

iid => 103

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2022-05-16 11:05:16

updated_at => 2022-05-16 11:05:16

Specifications DarkRay 5
Model DarkRay 5
Order 0
Size 13-3/8" wide, 1-5/8" thick, 45-3/4" long (34.0 cm wide, 4.1 cm thick, 116.2 cm long)
Body Wood Select Hardwood
Body Finish High Gloss Polyester
Body Colors
Body Bindings
Bridge Vintage Music Man® top loaded Black plated, steel bridge plate with vintage Black plated steel saddles
Pickguard Black
Scale Length 34"
Neck Radius 11" (27.9 cm)
Headstock Size Only 8-3/4" (22.2 cm) long
Frets 22 - High profile, wide, stainless steel
Neck Width 1-3/4" (44.5 mm) at the nut; 2-3/4" (69.9 mm) at the last fret
Neck Wood Roasted Maple
Fingerboard Ebony (Roasted Maple on Gold Bar)
Fret Markers Dot
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls vol, gain, blend, treble, bass
Switching 3-way lever distortion selector; Preamp Only, Preamp+Alpha Distortion, Preamp+Omega Distortion
Pickups Single Humbucking with Neodymium magnets
Left Handed
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)
